MXPBU-120140-145
MXPBU-120140-145
MXPBU-120140-145
MXPBU-120140-145
Stock Code

MXPBU-120140-145

SM 120 140 0145 T-XPBU
$115.76

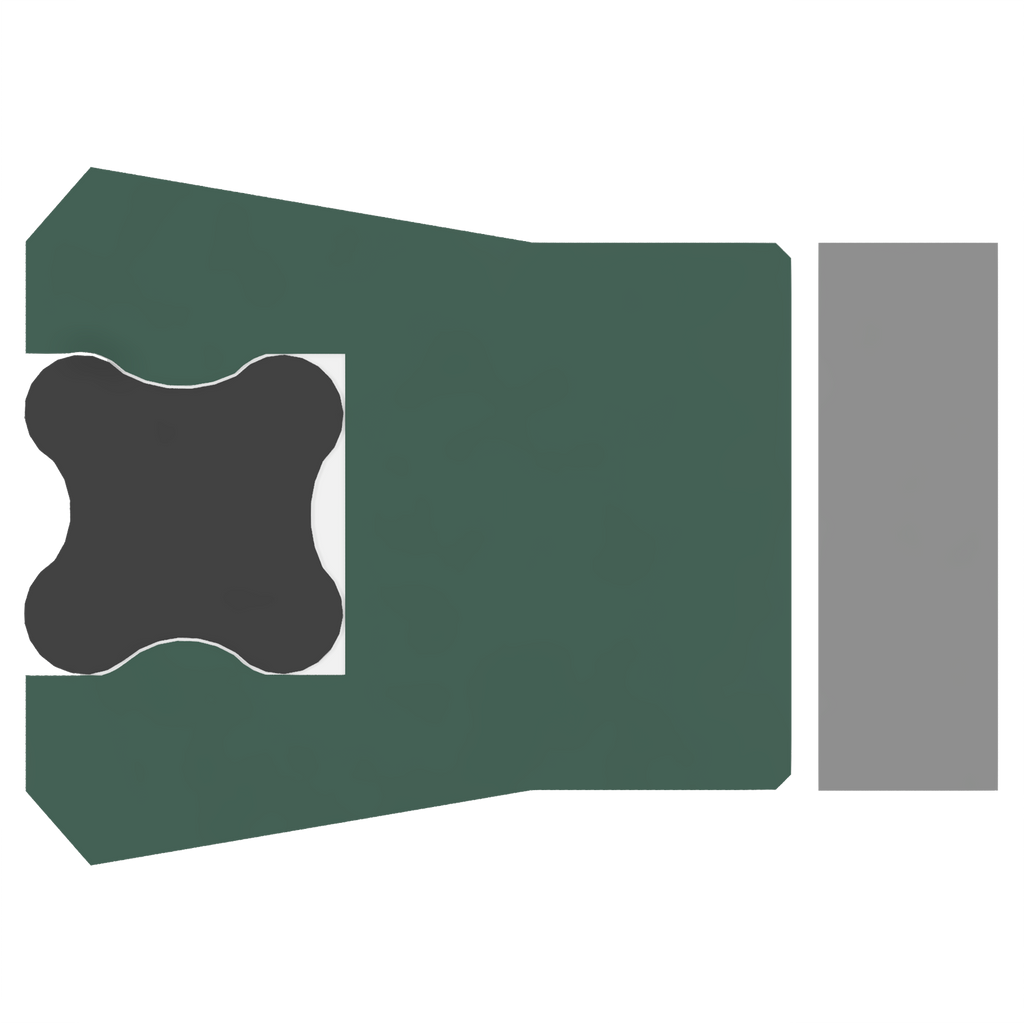

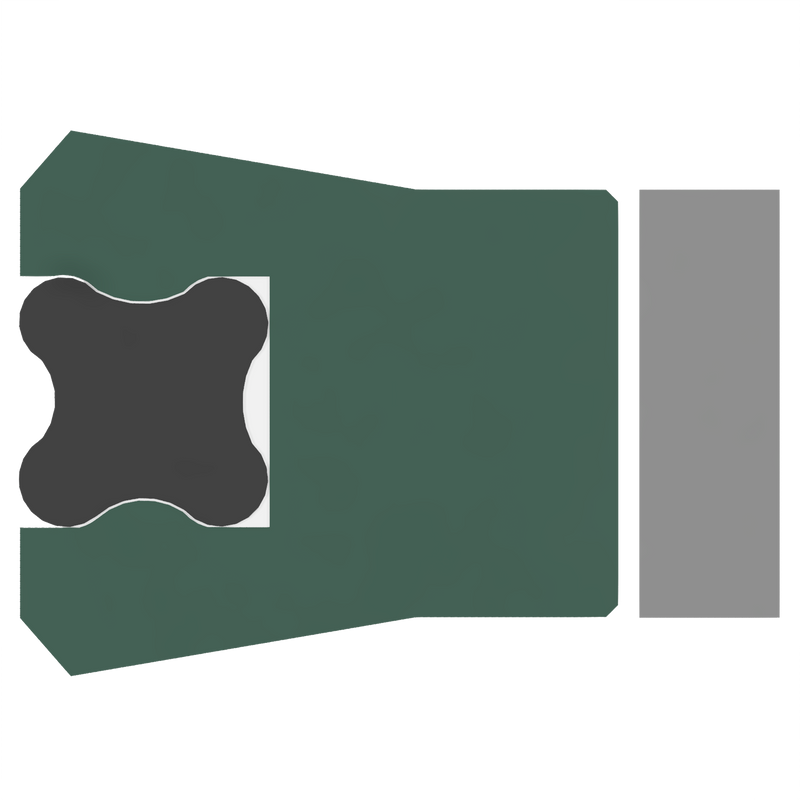

The XPBU is made from High Performance U2150 polyurethane, complete with a full radial Acetal back up ring. It is a symmetrical Single Acting Seal, that can be used for both Rod and Piston Applications. The XPBU provides excellent seal ability at low and high pressure due to the integral NBR quad ring and offers very low compression set. The Acetal back up ring provides additional support, protecting the seal from extruding at high pressures.
22 in Stock
Sydney, NSW
3
Melbourne, VIC
3
Newcastle, NSW
5
Brisbane, QLD
2
Hallam, VIC
8
Mackay, QLD
1

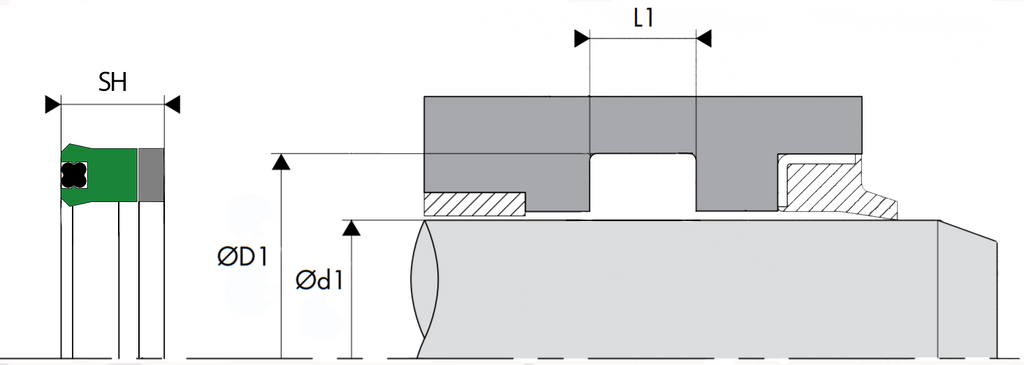

Profile: XPBU Ød1: 120.00 ØD1: 140.00 L1: 16.00 SH: 14.50
Temp: -45°C To 110°C Speed: 1.0m/s Pressure: 690 Bar Type: Rod Seals Applications(s): ["Rod Seals"]
