Stock Code

MXPBU-100115-13

SM 100 115 013 T-XPBU
$100.26
(ex GST)
Online Price
The XPBU is made from High Performance U2150 polyurethane, complete with a full radial Acetal back up ring. It is a symmetrical Single Acting Seal, that can be used for both Rod and Piston Applications. The XPBU provides excellent seal ability at low and high pressure due to the integral NBR quad ring and offers very low compression set. The Acetal back up ring provides additional support, protecting the seal from extruding at high pressures.
103 in Stock
Sydney, NSW
19
Melbourne, VIC
21
Newcastle, NSW
6
Brisbane, QLD
26
Hallam, VIC
10
Mackay, QLD
14
Adelaide, SA
7

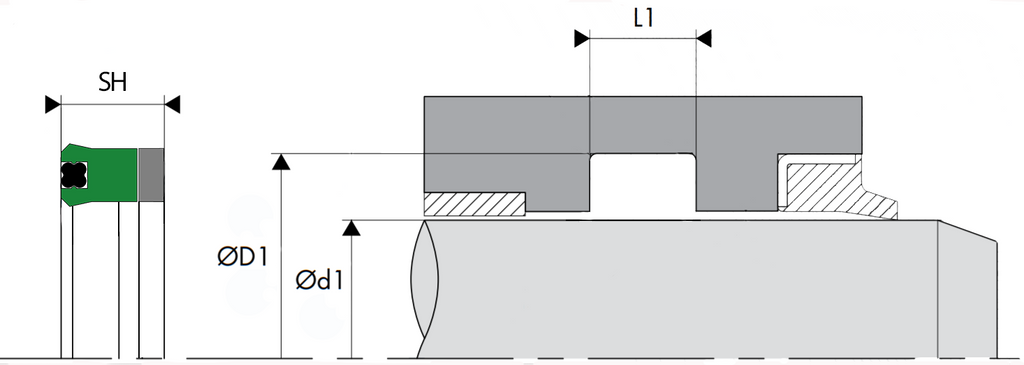

Profile: XPBU Ød1: 100.00 ØD1: 115.00 L1: 14.30 SH: 13.00
Temp: -45°C To 110°C Speed: 1.0m/s Pressure: 690 Bar Type: Rod Seals Application: Rod Seals
