Stock Code

MXPBU-045055-10

SM 045 055 010 T-XPBU
$57.87
(ex GST)
Online Price

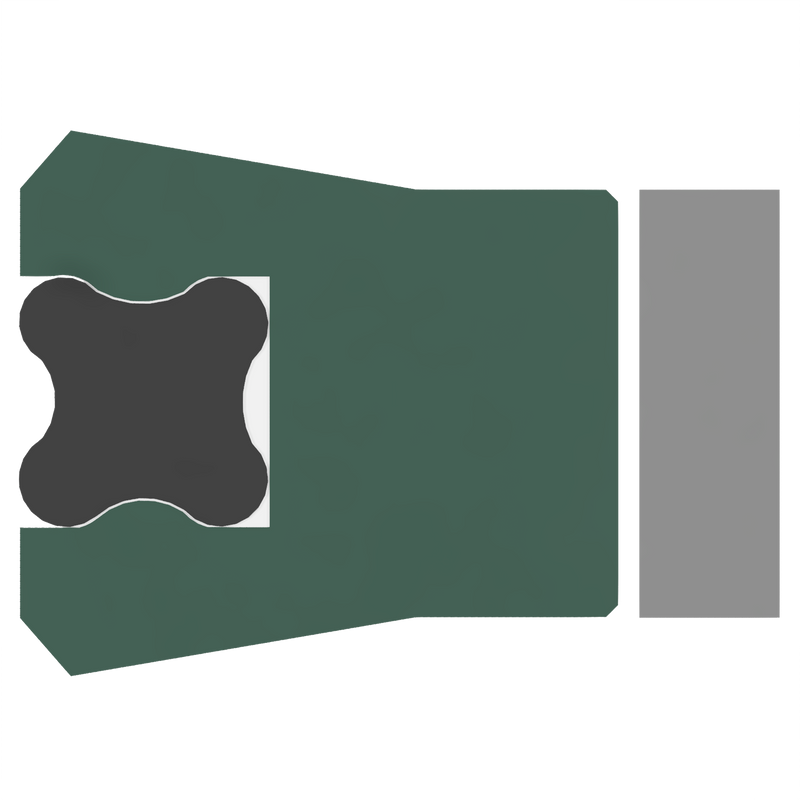

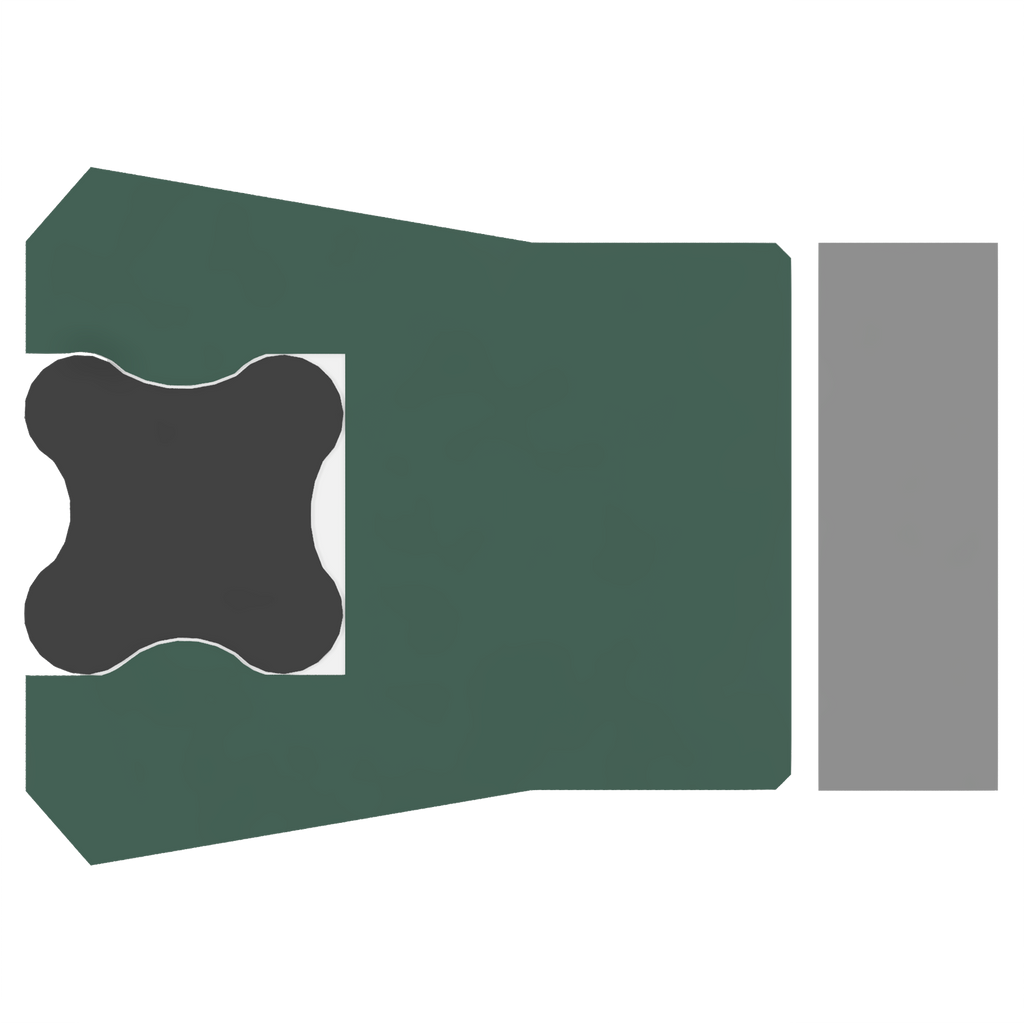

The XPBU is made from High Performance U2150 polyurethane, complete with a full radial Acetal back up ring. It is a symmetrical Single Acting Seal, that can be used for both Rod and Piston Applications. The XPBU provides excellent seal ability at low and high pressure due to the integral NBR quad ring and offers very low compression set. The Acetal back up ring provides additional support, protecting the seal from extruding at high pressures.
239 in Stock
Sydney, NSW
51
Melbourne, VIC
61
Newcastle, NSW
35
Brisbane, QLD
40
Hallam, VIC
20
Mackay, QLD
15
Adelaide, SA
17

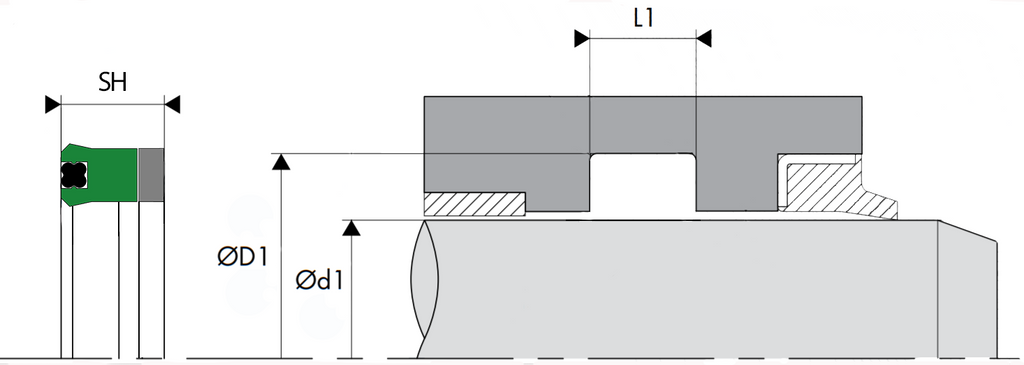

Profile: XPBU Ød1: 45.00 ØD1: 55.00 L1: 11.00 SH: 10.00
Temp: -45°C To 110°C Speed: 1.0m/s Pressure: 690 Bar Type: Rod Seals Application: Rod Seals
