Stock Code

XPRA-250-05000-562

SI 5000 5500 0562 T-XPRA
The XPRA is made from High Performance U2150 polyurethane. It is an Asymmetrical Rod Seal. The energised U Ring has an additional sealing lip on the heel for added stability and sealing. The XPRA provides excellent seal ability at low and high pressure due to the integral NBR quad ring and offers very low compression set. The Nylon anti extrusion ring provides additional support, protecting the seal from extruding at high pressures.
Price on Application
3 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
1
Hallam, VIC
0
Mackay, QLD
2

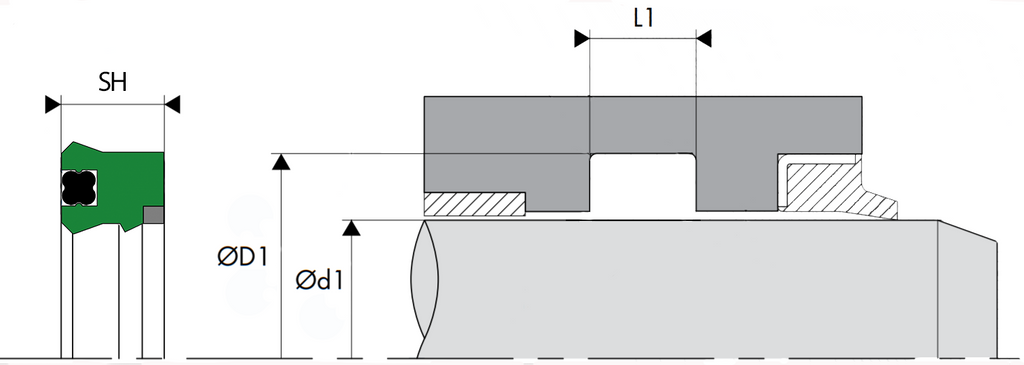

Profile: XPRA Ød1: 5.000 ØD1: 5.500 L1: 0.618 SH: 0.562
Temp: -45°C To 110°C Speed: 1.0m/s Pressure: 690 Bar Type: Rod Seals Applications(s): ["Rod Seals"]
