Stock Code

XP-250-01625-312B

SI 1625 2125 0312 T-XPB

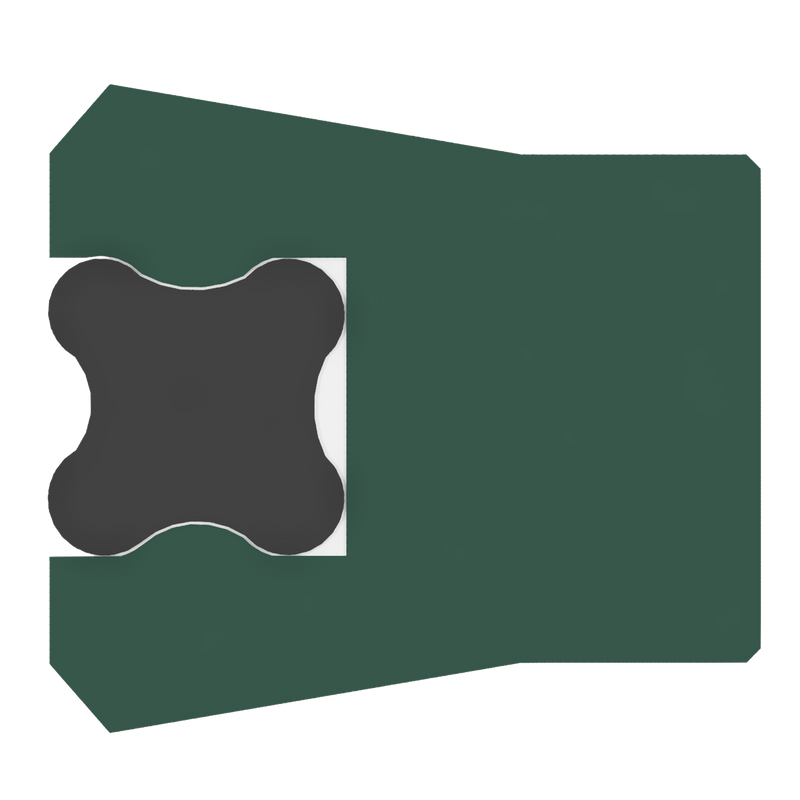

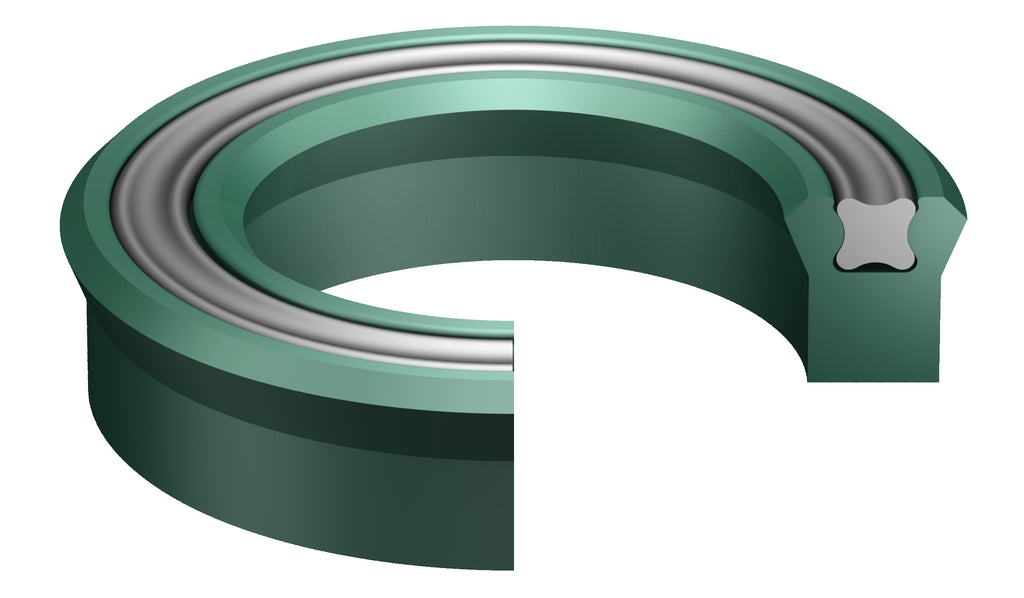

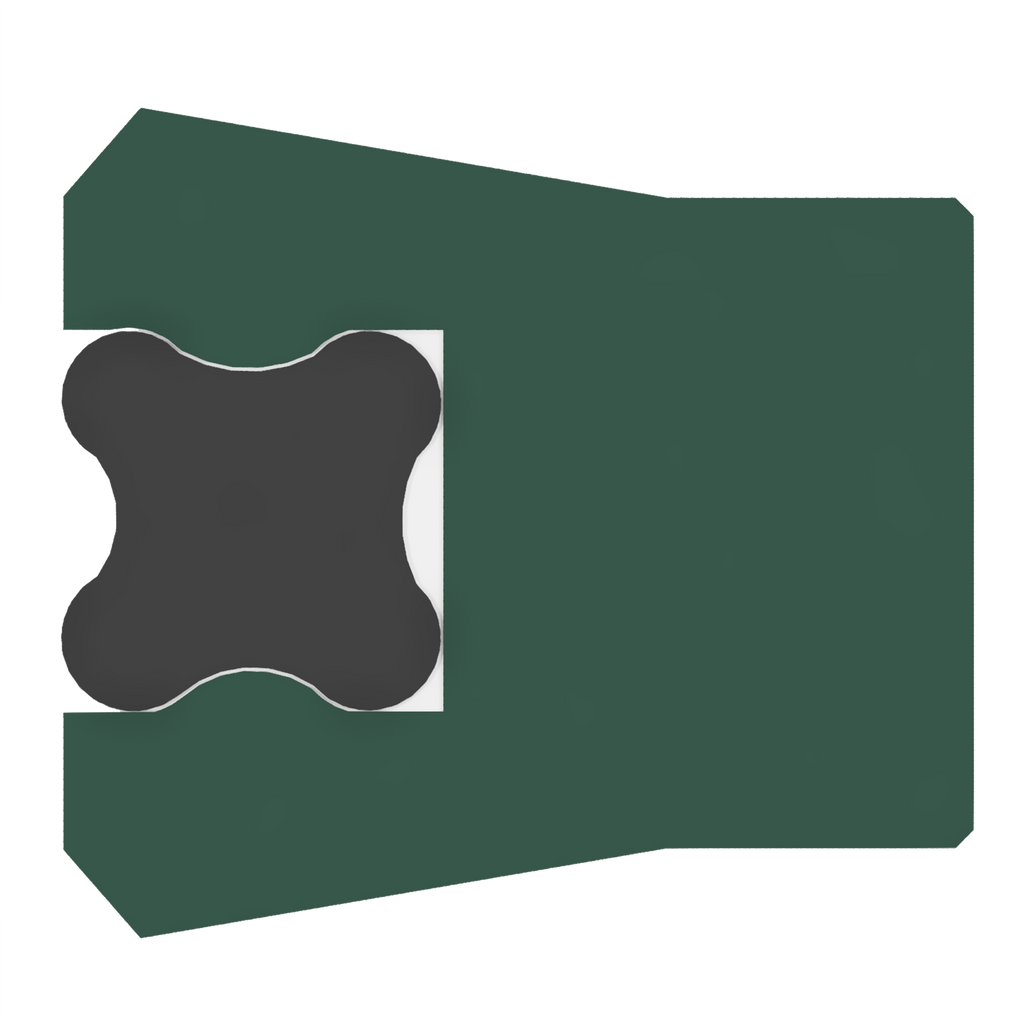

The XPB profile is made from High Performance U2150 polyurethane. It is a Symmetrical energised U Ring, for both Rod and Piston applications. It provides excellent seal ability at low and high pressure due to the integral NBR quad ring and offers very low compression set.
Price on Application
0 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

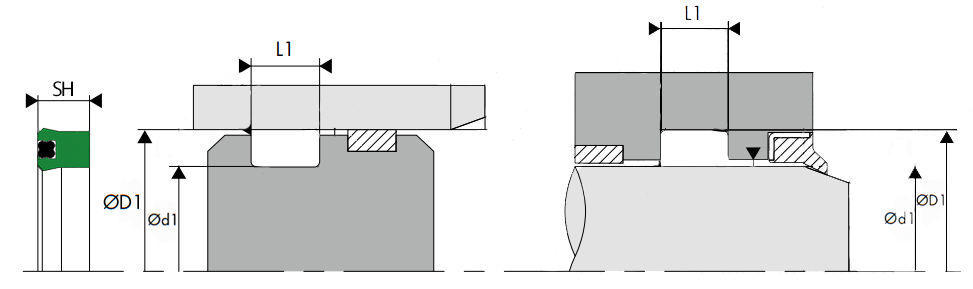

Profile: XPB Ød1: 1.625 ØD1: 2.125 L1: 0.343 SH: 0.312
Temp: -45°C To 110°C Speed: 1.0m/s Pressure: 400 Bar Type: S/A Symmetrical Applications(s): ["S/A Symmetrical"]
