Stock Code

XPRA-187-01250-250

SI 1250 1625 0250 T-XPRA
$30.89

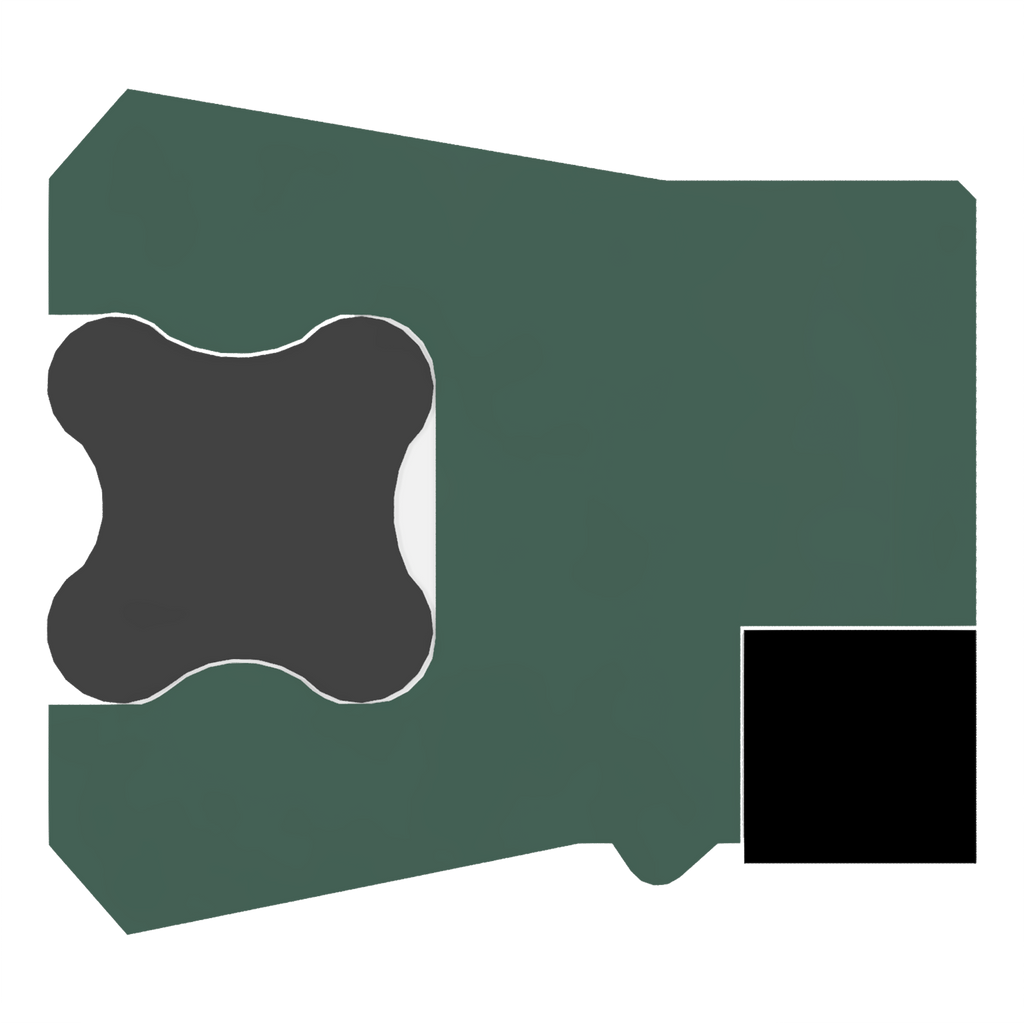

The XPRA is made from High Performance U2150 polyurethane. It is an Asymmetrical Rod Seal. The energised U Ring has an additional sealing lip on the heel for added stability and sealing. The XPRA provides excellent seal ability at low and high pressure due to the integral NBR quad ring and offers very low compression set. The Nylon anti extrusion ring provides additional support, protecting the seal from extruding at high pressures.
63 in Stock
Sydney, NSW
1
Melbourne, VIC
45
Newcastle, NSW
2
Brisbane, QLD
6
Hallam, VIC
3
Mackay, QLD
6

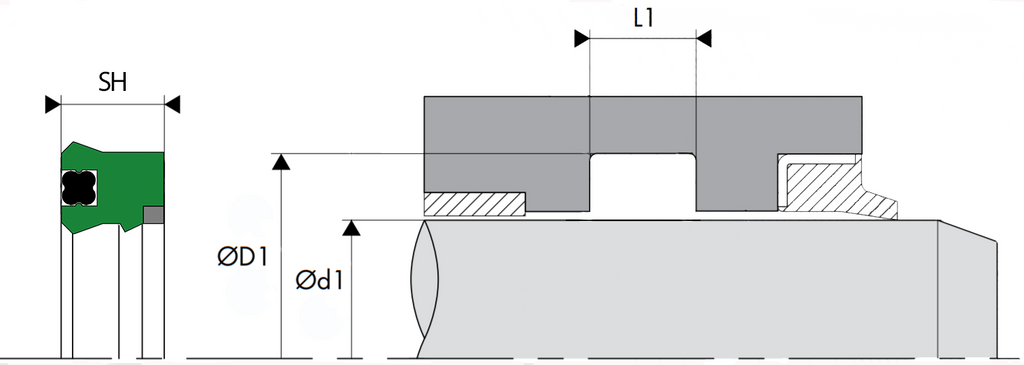

Profile: XPRA Ød1: 1.250 ØD1: 1.625 L1: 0.275 SH: 0.250
Temp: -45°C To 110°C Speed: 1.0m/s Pressure: 690 Bar Type: Rod Seals Applications(s): ["Rod Seals"]
