Stock Code

XP-312-00875-562B

SI 0875 1500 0562 T-XPB

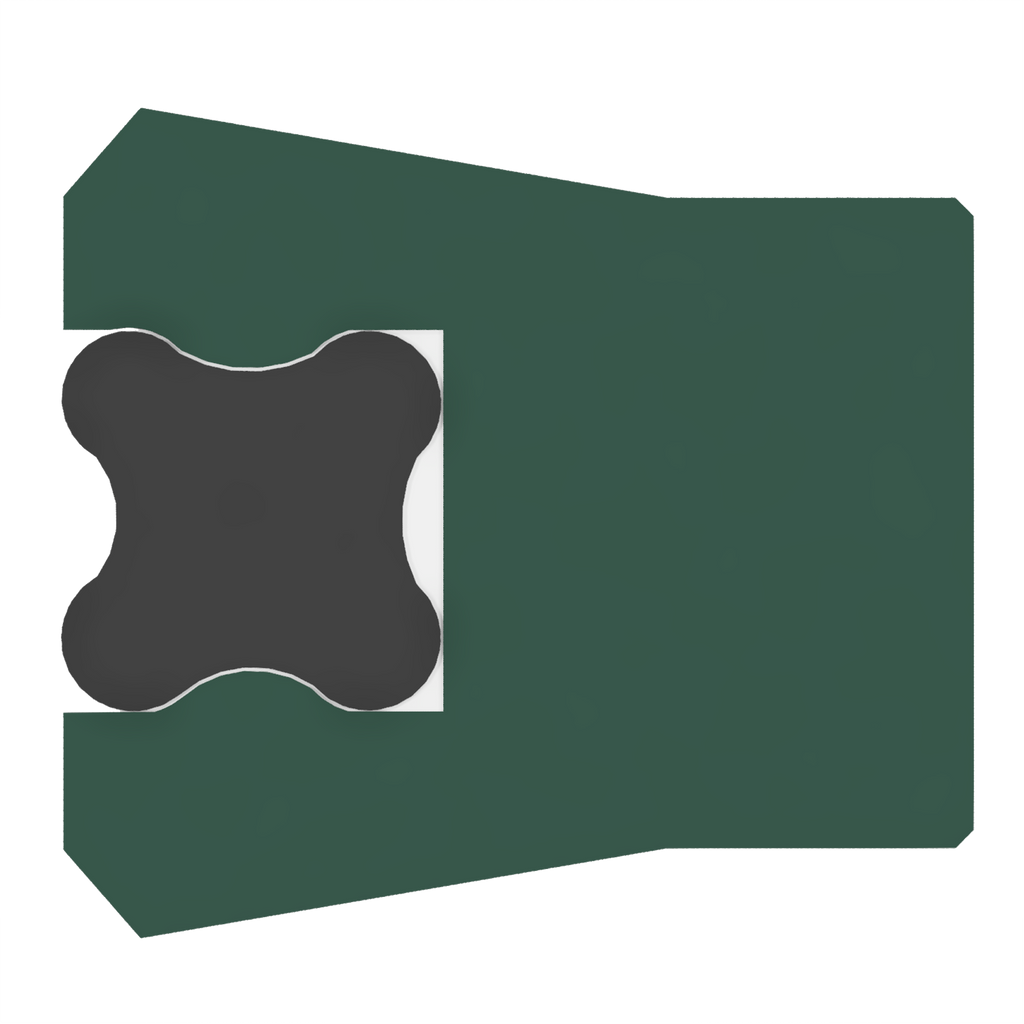

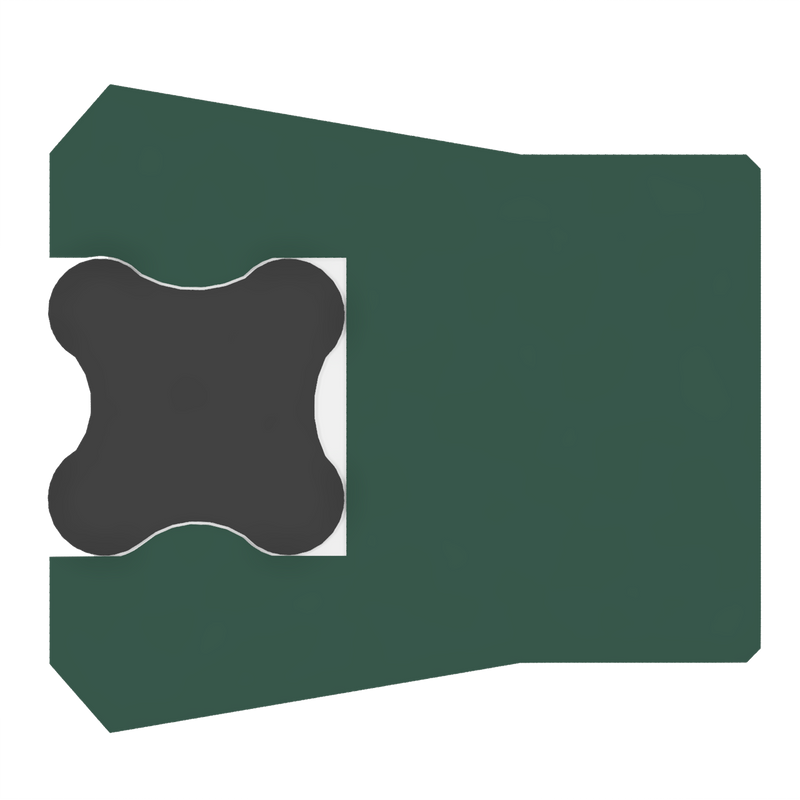

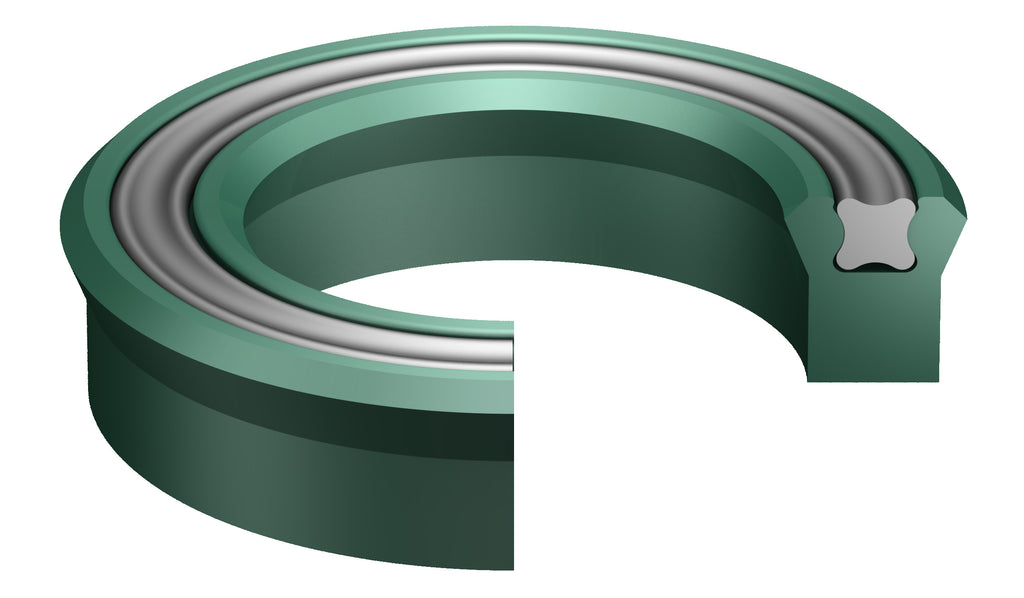

The XPB profile is made from High Performance U2150 polyurethane. It is a Symmetrical energised U Ring, for both Rod and Piston applications. It provides excellent seal ability at low and high pressure due to the integral NBR quad ring and offers very low compression set.
Price on Application
0 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

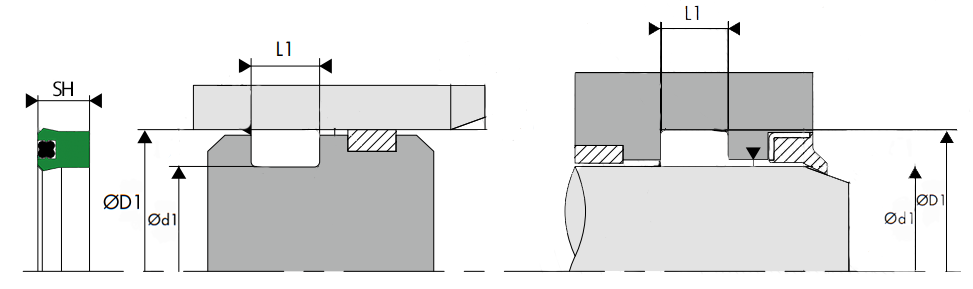

Profile: XPB Ød1: 0.875 ØD1: 1.500 L1: 0.618 SH: 0.562
Temp: -45°C To 110°C Speed: 1.0m/s Pressure: 400 Bar Type: S/A Symmetrical Applications(s): ["S/A Symmetrical"]
