Stock Code

AM-200170

DM 200 170 035 00635 T-A
Price on Enquiry
The “A” type is a high-performance heavy duty double acting piston seal, comprised of a flexible NBR sealing element, two TPE U shaped back-up rings and two Acetal wear rings.
Enquire Now
0 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

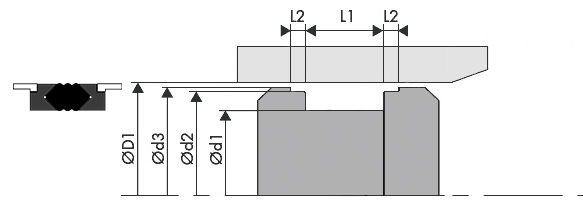

Profile: A Ød1: 170.00 ØD1: 200.00 Ød2: 193 Ød3: 198 L1: 35.00 L2: 6.35
Temp: -40°C To 100°C Speed: 0.5m/s Pressure: 700 Bar Type: D/A Piston Seals Wear Ring Diameter: 193 Piston Diameter: 198 Applications(s): ["D/A Piston Seals"]
