AM-150120
AM-150120
AM-150120
AM-150120
Stock Code

AM-150120

DM 150 120 0384 0064 T-A
Price on Enquiry

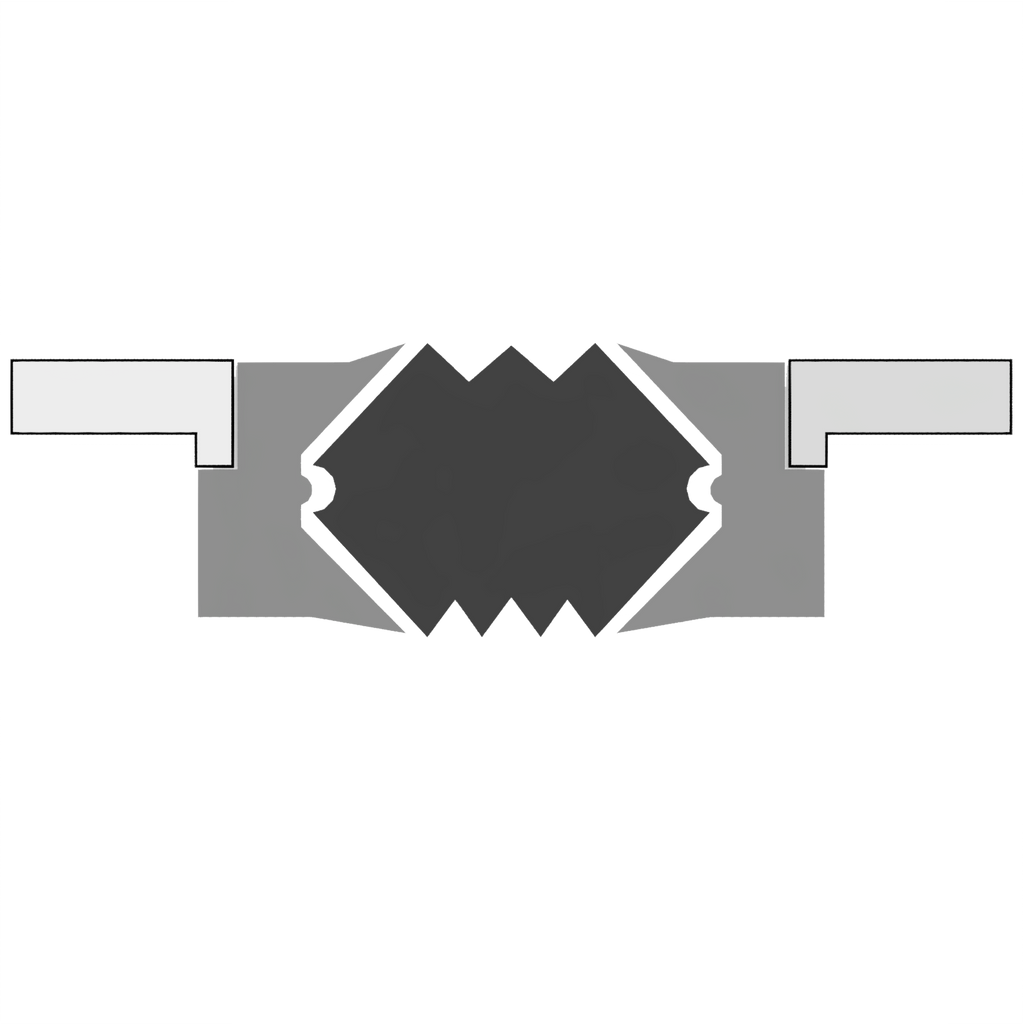

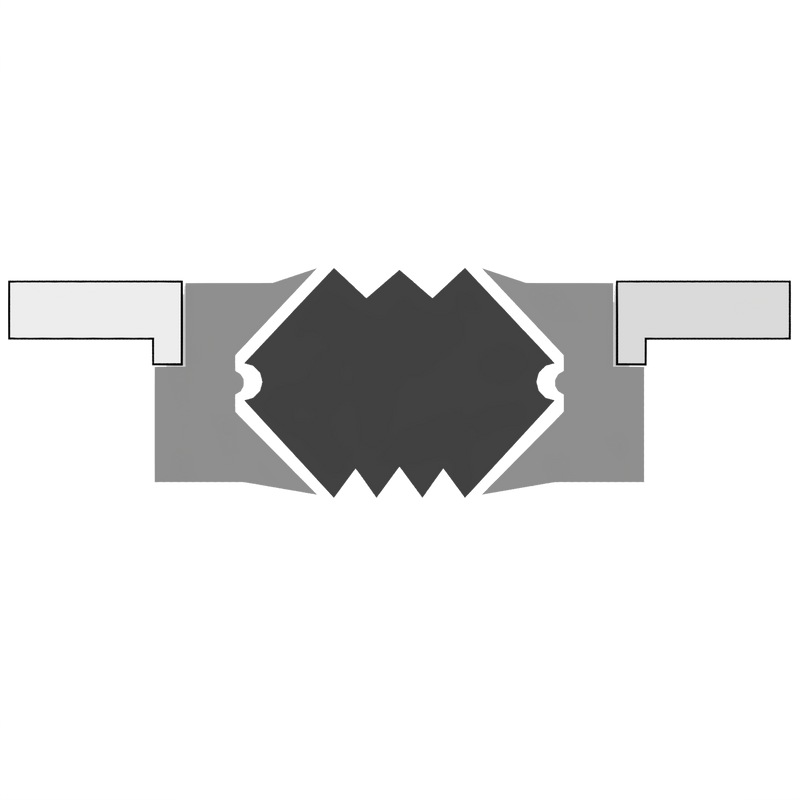

The “A” type is a high-performance heavy duty double acting piston seal, comprised of a flexible NBR sealing element, two TPE U shaped back-up rings and two Acetal wear rings.
Enquire Now
0 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

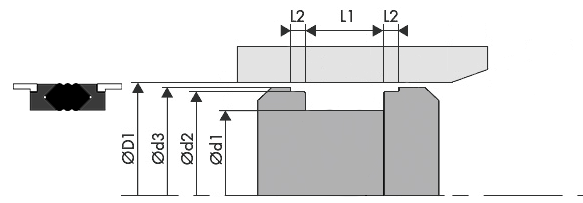

Profile: A Ød1: 120.00 ØD1: 150.00 Ød2: 143 Ød3: 148 L1: 38.40 L2: 6.40
Temp: -40°C To 100°C Speed: 0.5m/s Pressure: 700 Bar Type: D/A Piston Seals Wear Ring Diameter: 143 Piston Diameter: 148 Applications(s): ["D/A Piston Seals"]
