Stock Code

K46-063

DM 063 053 011 004 T-K46
$51.26
The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
15 in Stock
Sydney, NSW
5
Melbourne, VIC
4
Newcastle, NSW
1
Brisbane, QLD
3
Hallam, VIC
1
Mackay, QLD
1

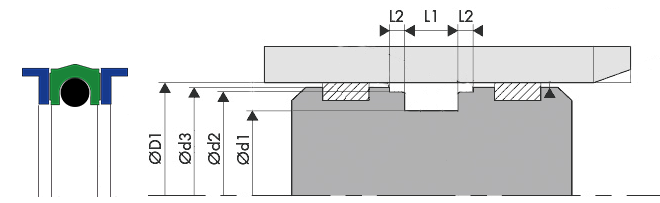

Profile: CPXL Ød1: 53.00 ØD1: 63.00 Ød2: 58.5 Ød3: 61.5 L1: 11.00 L2: 4.00
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 58.5 Piston Diameter: 61.5 Applications(s): ["D/A Piston Seals"]
