K46-050
K46-050
K46-050
K46-050
Stock Code

K46-050

DM 050 040 011 004 T-K46
$40.72
The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
7 in Stock
Sydney, NSW
2
Melbourne, VIC
1
Newcastle, NSW
1
Brisbane, QLD
1
Hallam, VIC
1
Mackay, QLD
1

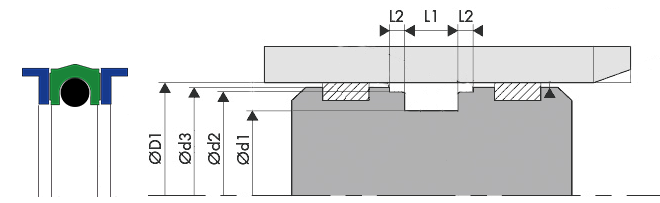

Profile: CPXL Ød1: 40.00 ØD1: 50.00 Ød2: 45.5 Ød3: 49 L1: 11.00 L2: 4.00
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 45.5 Piston Diameter: 49 Applications(s): ["D/A Piston Seals"]
