Stock Code

K46-040

DM 040 030 011 004 T-K46
$30.90

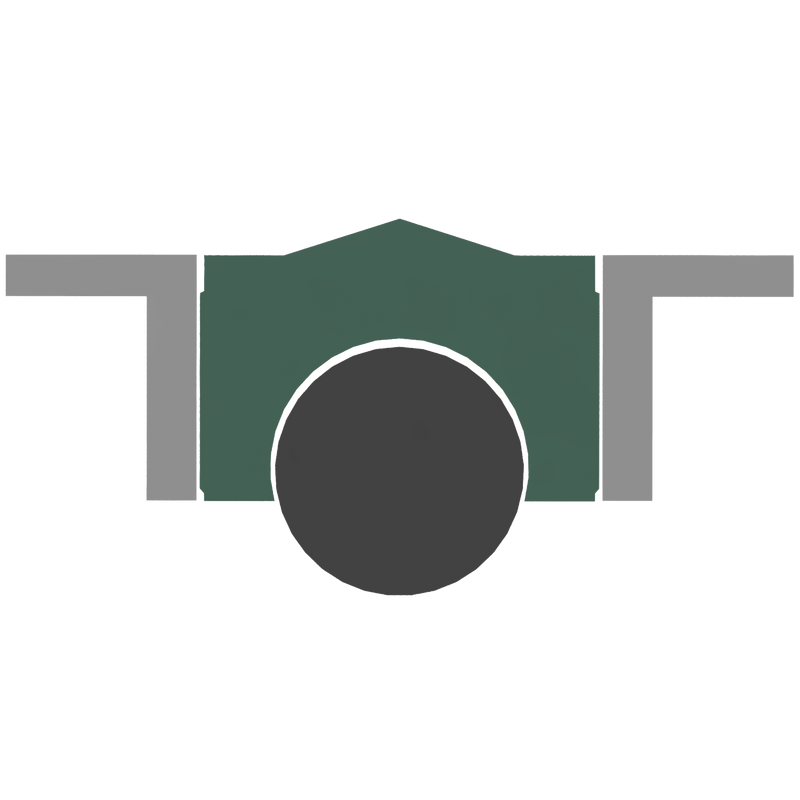

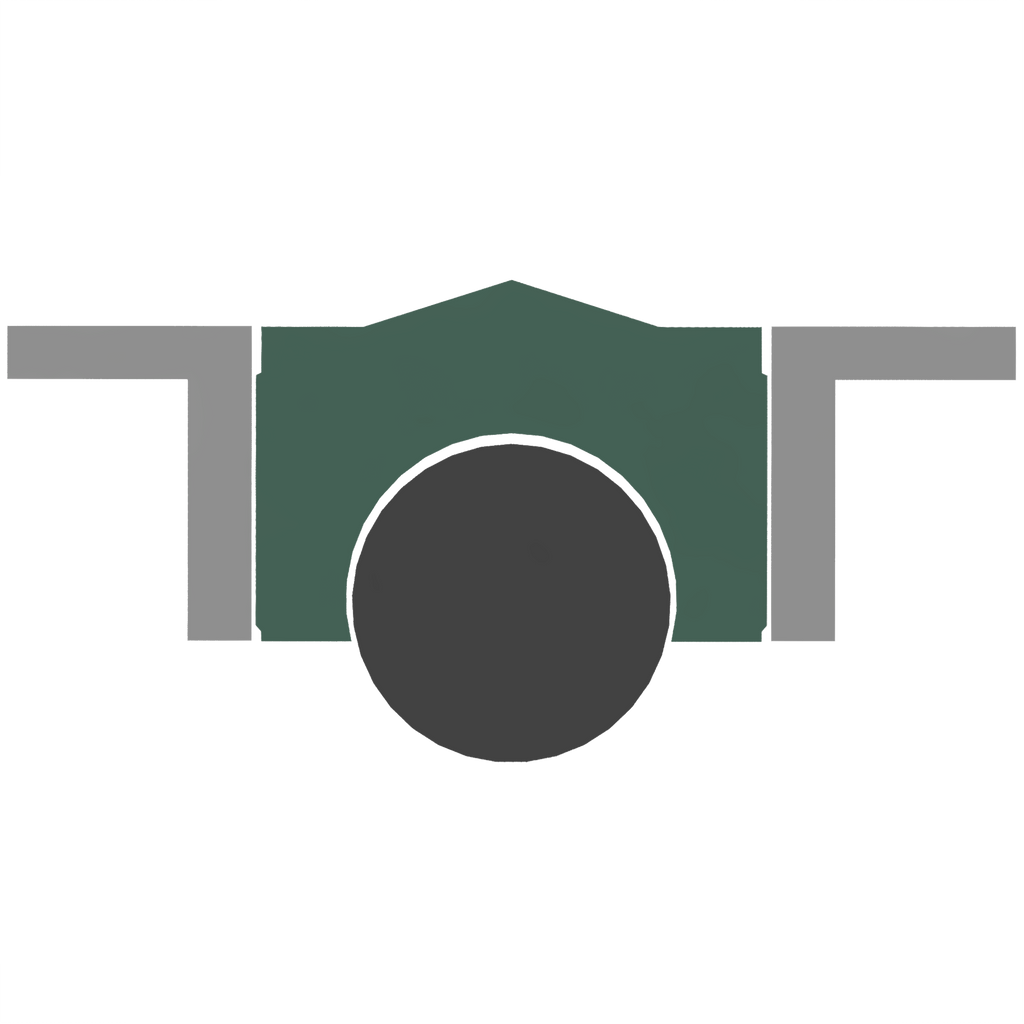

The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
9 in Stock
Sydney, NSW
0
Melbourne, VIC
4
Newcastle, NSW
0
Brisbane, QLD
2
Hallam, VIC
1
Mackay, QLD
2

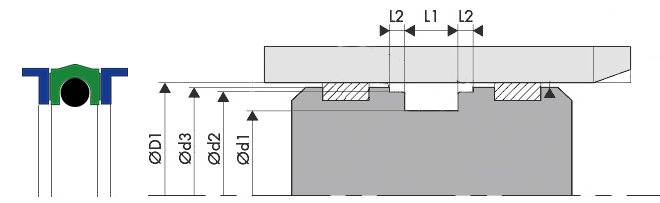

Profile: CPXL Ød1: 30.00 ØD1: 40.00 Ød2: 35.5 Ød3: 39 L1: 11.00 L2: 4.00
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 35.5 Piston Diameter: 39 Applications(s): ["D/A Piston Seals"]
