Stock Code

MSSM-0250175

DM 025 0175 0085 00325 T-MSS
$53.89
(ex GST)
Online Price

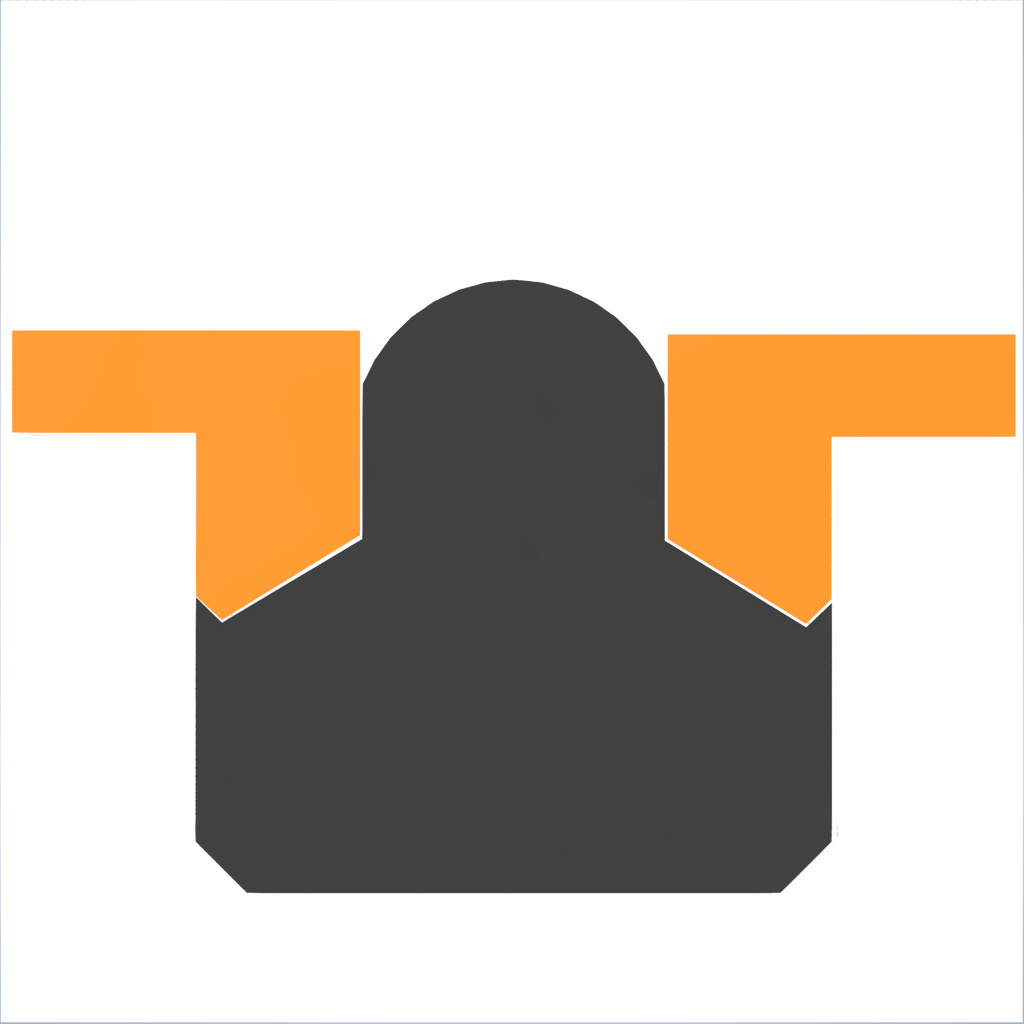

The MSS is a light duty double acting compact piston seal suited for one piece pistons. Comprised of a flexible NBR sealing element and two Polyacetal wear rings.
2 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
2
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0
Adelaide, SA
0

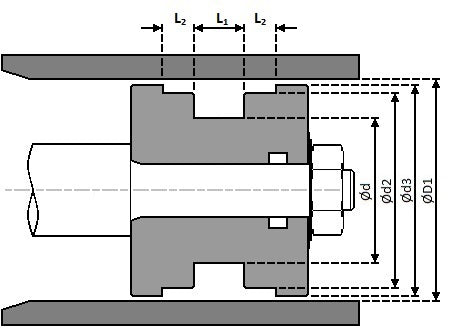

Profile: MSS Ød1: 17.50 ØD1: 25.00 Ød2: 21.3 Ød3: 24 L1: 8.50 L2: 3.25 SH: 3.25
Temp: -30°C To 100°C Speed: 0.5m/s Pressure: 160 Bar Type: D/A Piston Seals Wear Ring Diameter: 21.3 Piston Diameter: 24 Application: D/A Piston Seals
