Stock Code

CPX-05500

DI 5500 5026 0375 T-CPX
$173.21
(ex GST)
Online Price

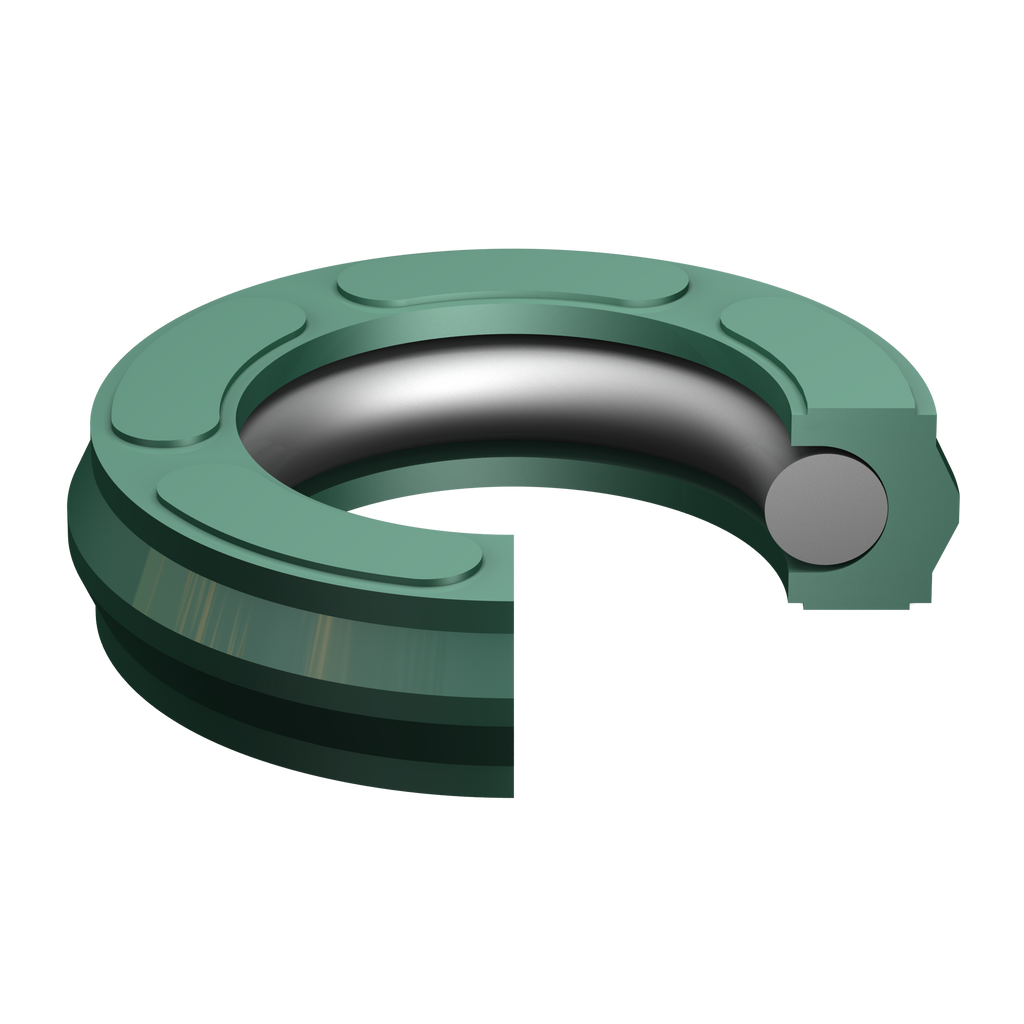

The CPX double-acting piston seal is designed to directly interchange with T-Seals, O-rings and X-Rings, in non-backup ring grooves. The urethane sealing surface produces a positive seal from vacuum to high pressure, due to the narrow single line contact area.
76 in Stock
Sydney, NSW
7
Melbourne, VIC
15
Newcastle, NSW
17
Brisbane, QLD
24
Hallam, VIC
9
Mackay, QLD
2
Adelaide, SA
2

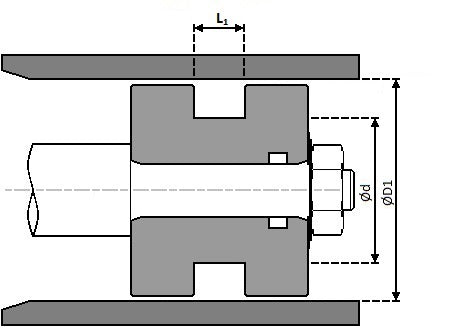

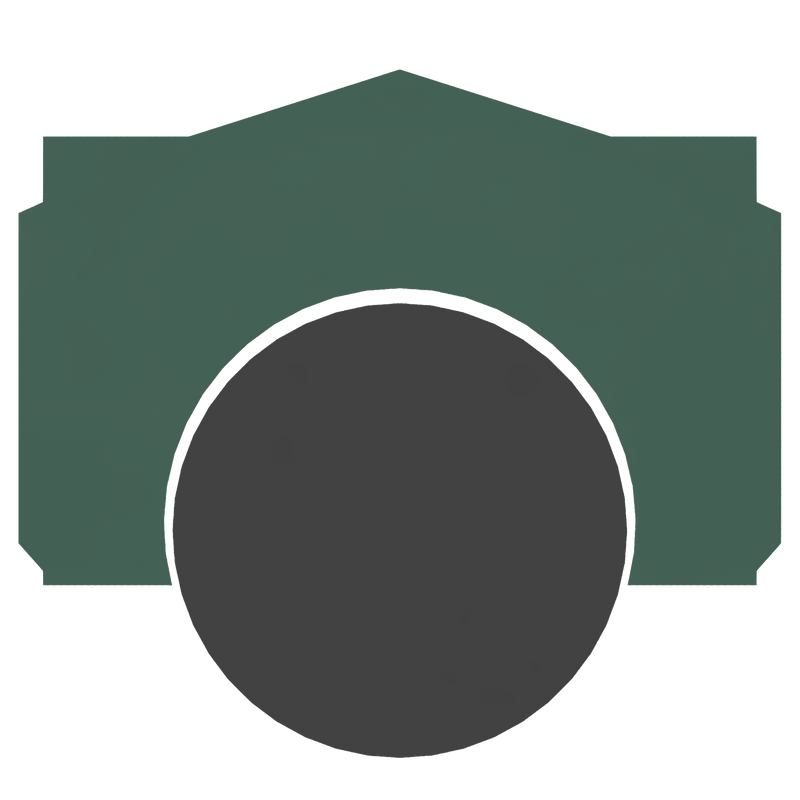

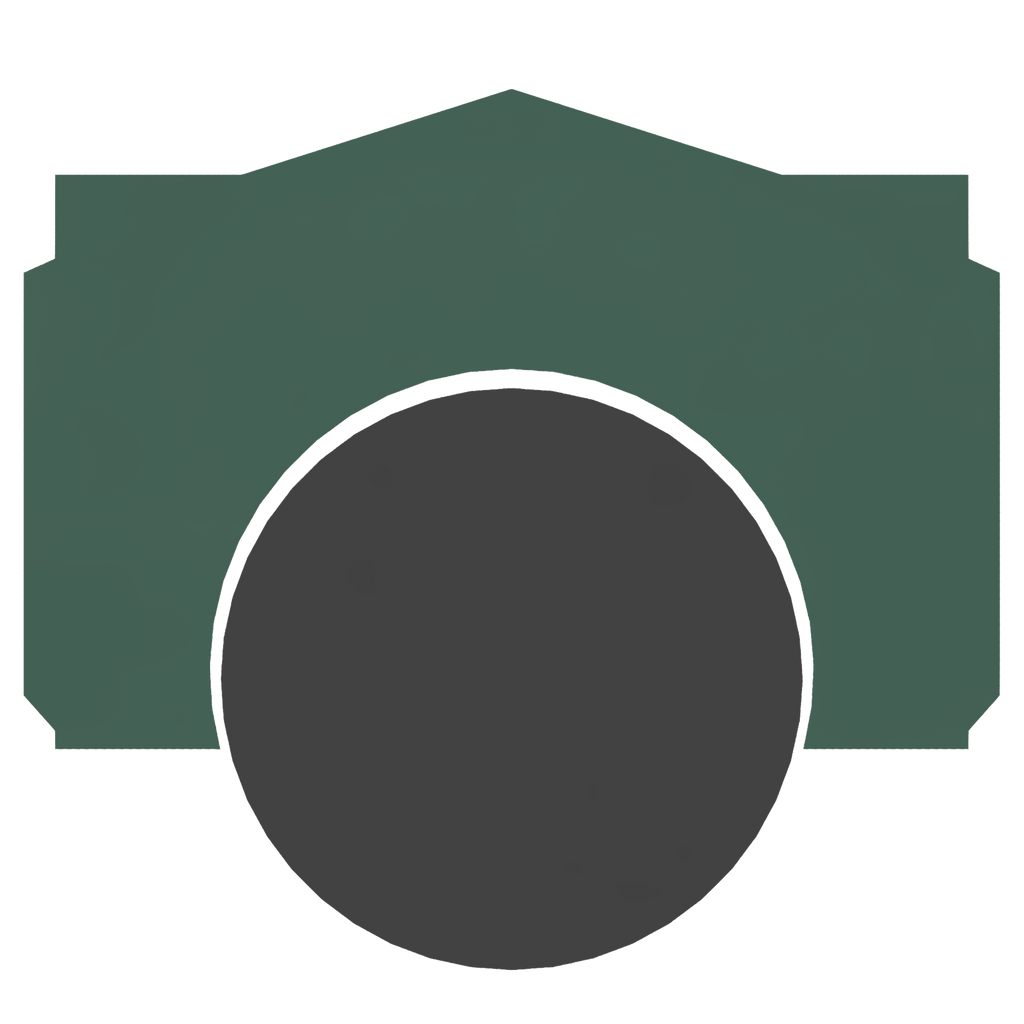

Profile: CPX Ød1: 5.026 ØD1: 5.500 L1: 0.375
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 250 Bar Type: D/A Piston Seals Application: D/A Piston Seals - 1 Piece Piston
