LS-550475-500
LS-550475-500
LS-550475-500
LS-550475-500
Stock Code

LS-550475-500

DI 5500 4750 0780 0500 T-KGD
$174.93
(ex GST)
Online Price
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
13 in Stock
Sydney, NSW
1
Melbourne, VIC
4
Newcastle, NSW
2
Brisbane, QLD
2
Hallam, VIC
2
Mackay, QLD
2
Adelaide, SA
0

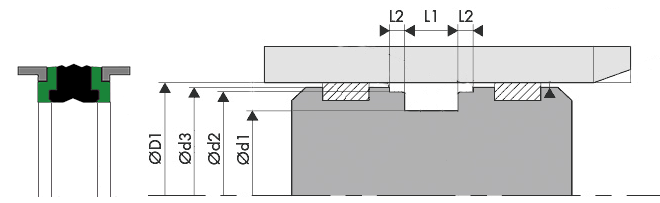

Profile: KGD Ød1: 4.750 ØD1: 5.500 Ød2: 5.213 Ød3: 5.437 L1: 0.780 L2: 0.500
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 5.213 Piston Diameter: 5.437 Application: D/A Piston Seals - 1 Piece Piston
