Stock Code

DAS-500425

DI 5000 4250 0963 0245 T-MD
Sale price $140.00
The MD is a high-performing Double Acting compact Piston Seal, comprised of a flexible rubber ring. two polyester back-up rings and two POM wear rings.
12 in Stock
Sydney, NSW
1
Melbourne, VIC
5
Newcastle, NSW
3
Brisbane, QLD
1
Hallam, VIC
1
Mackay, QLD
1

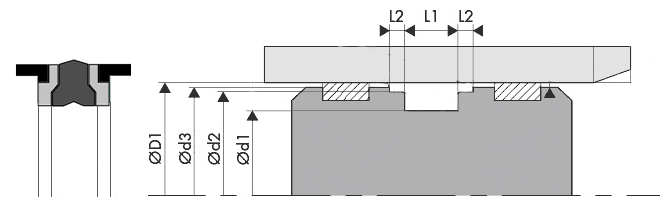

Profile: MD Ød1: 4.250 ØD1: 5.000 Ød2: 4.772 Ød3: 4.937 L1: 0.963 L2: 0.245
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 4.772 Piston Diameter: 4.937 Applications(s): ["D/A Piston Seals"]
