KGD-500425-375
KGD-500425-375
KGD-500425-375
KGD-500425-375
Stock Code

KGD-500425-375

DI 5000 4250 0780 0375 T-KGD
$111.14
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
36 in Stock
Sydney, NSW
3
Melbourne, VIC
19
Newcastle, NSW
3
Brisbane, QLD
1
Hallam, VIC
5
Mackay, QLD
5

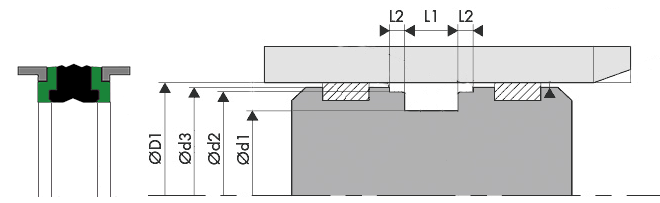

Profile: KGD Ød1: 4.250 ØD1: 5.000 Ød2: 4.713 Ød3: 4.937 L1: 0.780 L2: 0.375
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 4.713 Piston Diameter: 4.937 Applications(s): ["D/A Piston Seals"]
