Stock Code

HDX-05000-XSL

DI 5000 4000 1500 0375 T-HDX XSL
$186.38
(ex GST)
Online Price
The HDX has been designed to upgrade aging Rubber/Fabric Piston Seals, with a modern, wear resistant self-lubricated 60 Shore D urethane face and a 80 Shore A NBR energiser. The larger Guide Rings have been developed to provide more support, in order to withstand greater side loads and manage larger extrusion gaps in extreme conditions at higher speeds and pressures.
62 in Stock
Sydney, NSW
9
Melbourne, VIC
12
Newcastle, NSW
7
Brisbane, QLD
22
Hallam, VIC
3
Mackay, QLD
7
Adelaide, SA
2

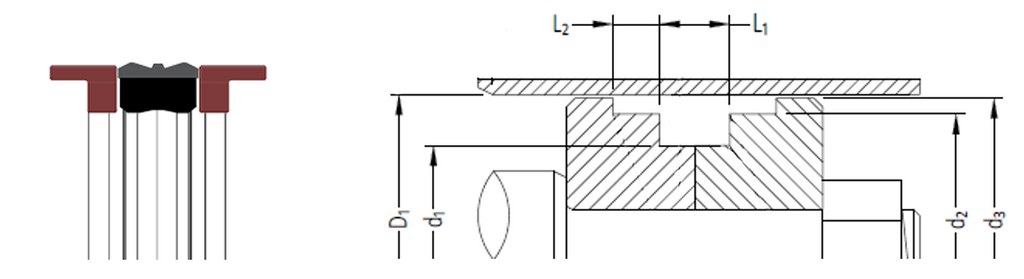

Profile: HDX Ød1: 4.000 ØD1: 5.000 Ød2: 4.732 Ød3: 4.937 L1: 1.500 L2: 0.375
Temp: -35°C To 105°C Speed: 2.0m/s Pressure: 700 Bar Type: D/A Piston Seals Wear Ring Diameter: 4.732 Piston Diameter: 4.937 Application: D/A Piston Seals - Split Piston Only
