HDX-05000A-XSL
HDX-05000A-XSL
HDX-05000A-XSL
HDX-05000A-XSL
Stock Code

HDX-05000A-XSL

DI 5000 4000 1055 0375 T-HDX XSL
$187.70
The HDX has been designed to upgrade aging Rubber/Fabric Piston Seals, with a modern, wear resistant self-lubricated 60 Shore D urethane face and a 80 Shore A NBR energiser. The larger Guide Rings have been developed to provide more support, in order to withstand greater side loads and manage larger extrusion gaps in extreme conditions at higher speeds and pressures.
11 in Stock
Sydney, NSW
2
Melbourne, VIC
1
Newcastle, NSW
2
Brisbane, QLD
1
Hallam, VIC
3
Mackay, QLD
2

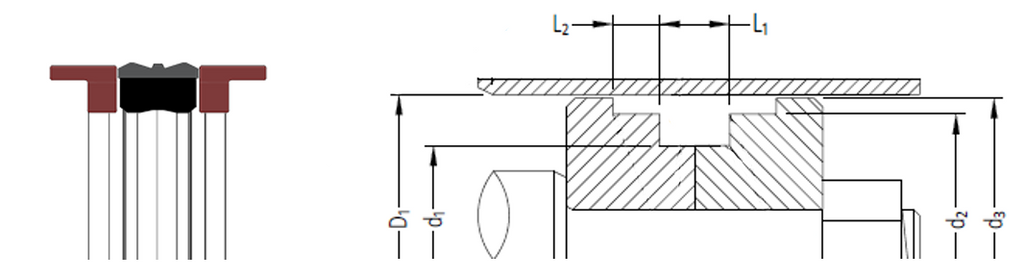

Profile: HDX Ød1: 4.000 ØD1: 5.000 Ød2: 4.73 Ød3: 4.937 L1: 1.055 L2: 0.375
Temp: -35°C To 105°C Speed: 2.0m/s Pressure: 700 Bar Type: D/A Piston Seals Wear Ring Diameter: 4.73 Piston Diameter: 4.937 Applications(s): ["D/A Piston Seals"]
