MSS-04750
MSS-04750
MSS-04750
MSS-04750
Stock Code

MSS-04750

DI 4750 4250 0562 0210 T-MSS
$96.76

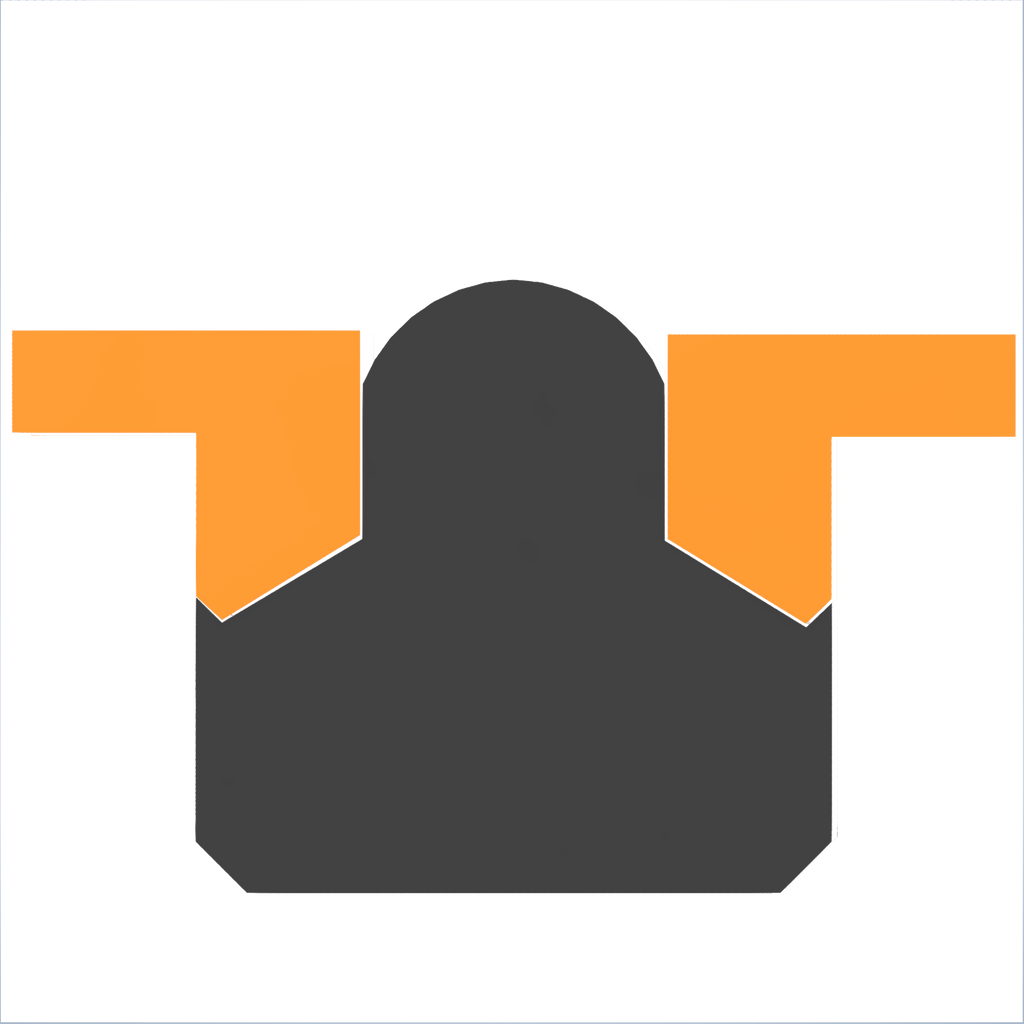

The MSS is a light duty double acting compact piston seal suited for one piece pistons. Comprised of a flexible NBR sealing element and two Polyacetal wear rings.
1 in Stock
Sydney, NSW
0
Melbourne, VIC
1
Newcastle, NSW
0
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

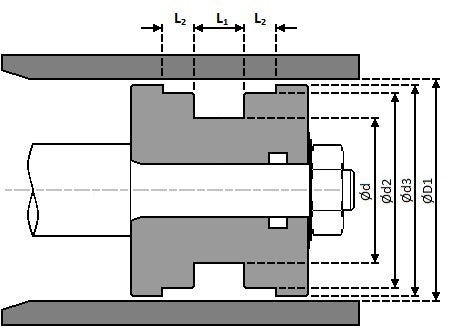

Profile: MSS Ød1: 4.250 ØD1: 4.750 Ød2: 4.52 Ød3: 4.687 L1: 0.562 L2: 0.210
Temp: -30°C To 100°C Speed: 0.5m/s Pressure: 160 Bar Type: D/A Piston Seals Wear Ring Diameter: 4.52 Piston Diameter: 4.687 Applications(s): ["D/A Piston Seals"]
