Stock Code

K46-04000

DI 4000 3500 0562 0210 T-K46
$80.89
The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
25 in Stock
Sydney, NSW
2
Melbourne, VIC
9
Newcastle, NSW
5
Brisbane, QLD
5
Hallam, VIC
4
Mackay, QLD
0

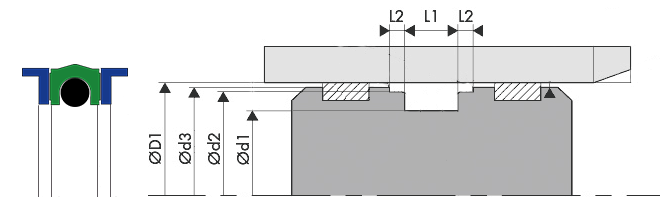

Profile: CPXL Ød1: 3.500 ØD1: 4.000 Ød2: 3.77 Ød3: 3.937 L1: 0.562 L2: 0.210
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.77 Piston Diameter: 3.937 Applications(s): ["D/A Piston Seals"]
