KGD-400325-500
KGD-400325-500
KGD-400325-500
KGD-400325-500
Stock Code

KGD-400325-500

DI 4000 3250 0780 0500 T-KGD
$110.24
(ex GST)
Online Price
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
79 in Stock
Sydney, NSW
18
Melbourne, VIC
11
Newcastle, NSW
10
Brisbane, QLD
15
Hallam, VIC
8
Mackay, QLD
11
Adelaide, SA
6

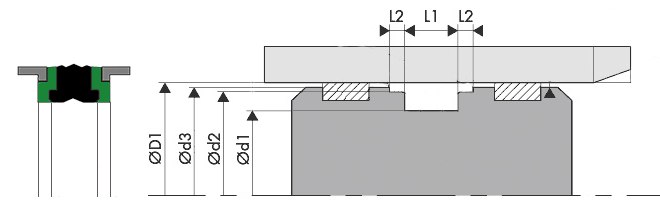

Profile: KGD Ød1: 3.250 ØD1: 4.000 Ød2: 3.745 Ød3: 3.937 L1: 0.780 L2: 0.500
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.745 Piston Diameter: 3.937 Application: D/A Piston Seals - 1 Piece Piston
