KGD-400325-250
KGD-400325-250
KGD-400325-250
KGD-400325-250
Stock Code

KGD-400325-250

DI 4000 3250 0780 0250 T-KGD
$90.72
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
798 in Stock
Sydney, NSW
47
Melbourne, VIC
554
Newcastle, NSW
65
Brisbane, QLD
77
Hallam, VIC
35
Mackay, QLD
20

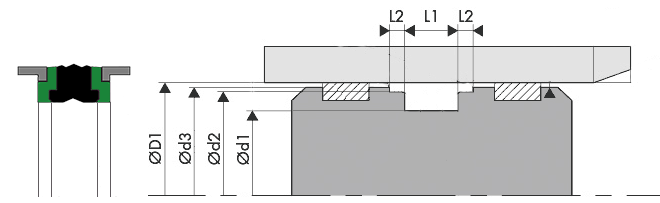

Profile: KGD Ød1: 3.250 ØD1: 4.000 Ød2: 3.773 Ød3: 3.937 L1: 0.780 L2: 0.250
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.773 Piston Diameter: 3.937 Applications(s): ["D/A Piston Seals"]
