Stock Code

CRX-03750

Name: CRX-03750
Brand: Hydraulic Seals Australia
SKU: CRX-03750
Availability: InStock

DI 3750 4120 0281 T-CRX

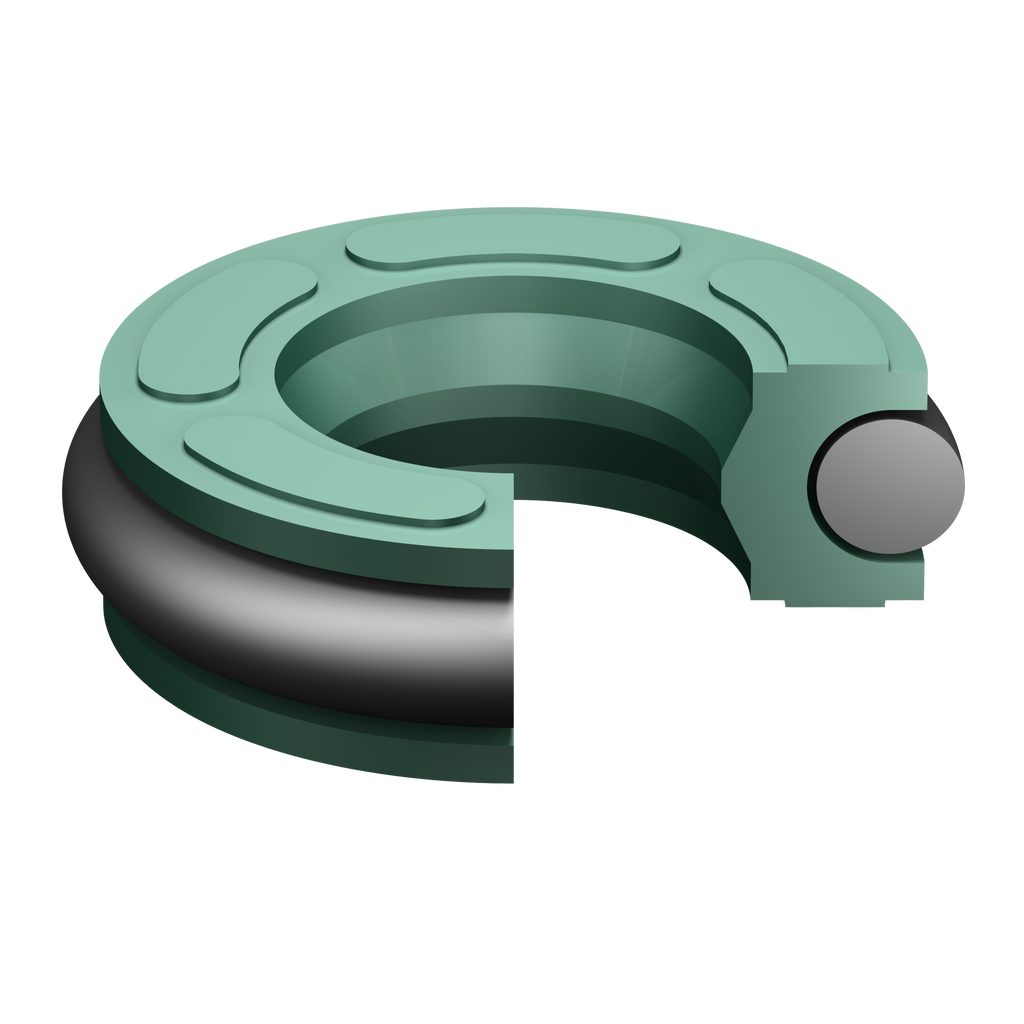

The CRX double-acting rod seal is designed to directly interchange with T-Seals, O-rings and X-Rings, in non-backup ring grooves. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.

Price on Application

Stock Locations 9 in Stock

Sydney, NSW

Melbourne, VIC

Newcastle, NSW

Brisbane, QLD

Hallam, VIC

Mackay, QLD

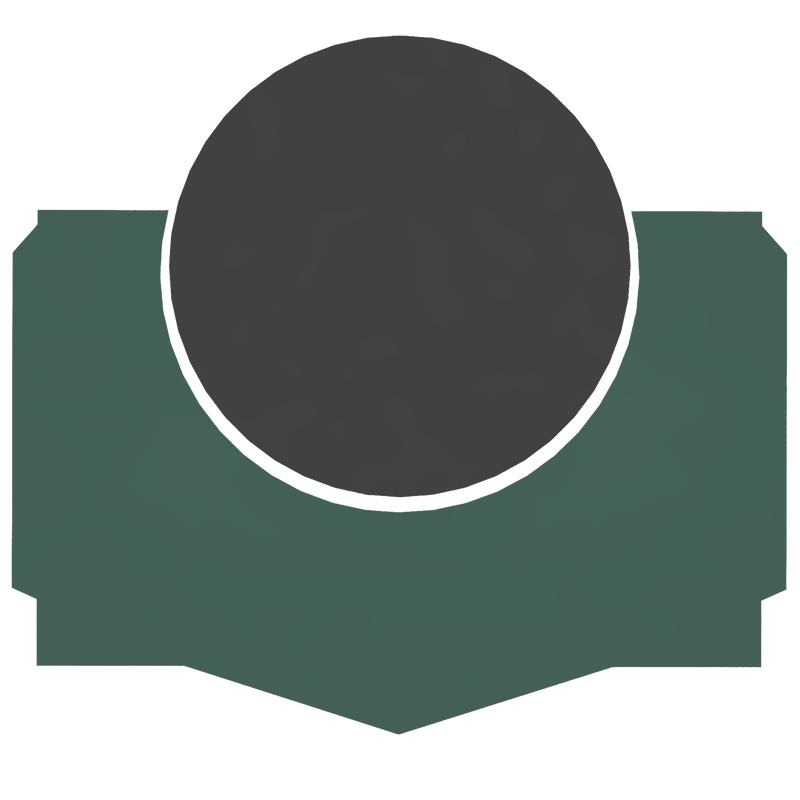

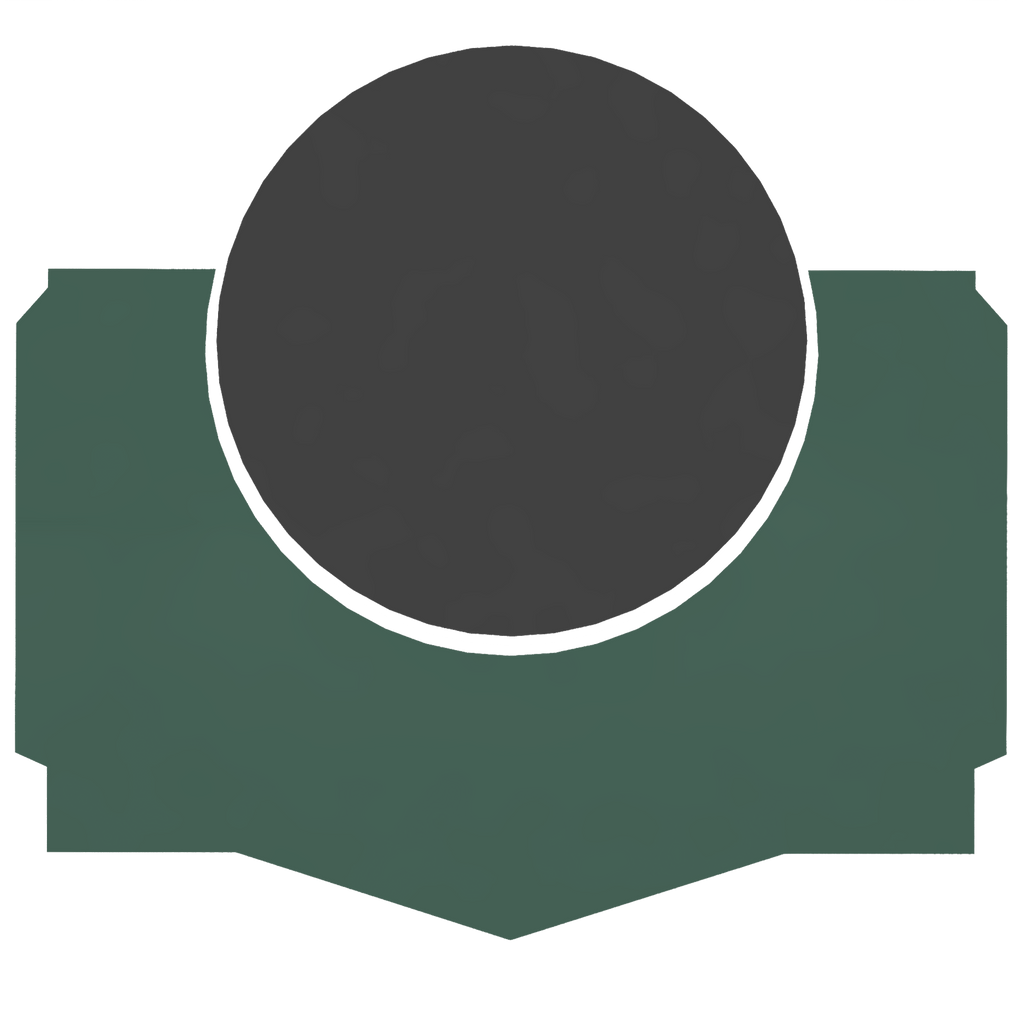

Profile: CRX Ød1: 3.750 ØD1: 4.120 L1: 0.281

Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 250 Bar Type: D/A Rod Seals Applications(s): ["D/A Rod Seals"]
