Stock Code

LS-375325-500

DI 3750 3250 0587 0500 T-KGD
$104.57
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
1 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
1
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

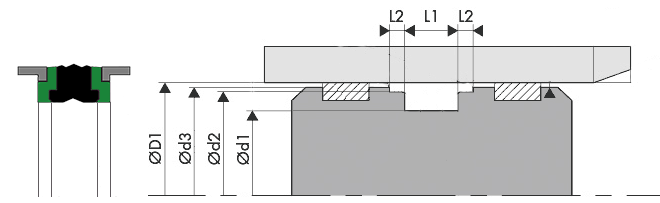

Profile: KGD Ød1: 3.250 ØD1: 3.750 Ød2: 3.523 Ød3: 3.687 L1: 0.587 L2: 0.500
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.523 Piston Diameter: 3.687 Applications(s): ["D/A Piston Seals"]
