Stock Code

CPX-03500WB

DI 3500 3130 0410 T-CPX
$52.72
(ex GST)
Online Price

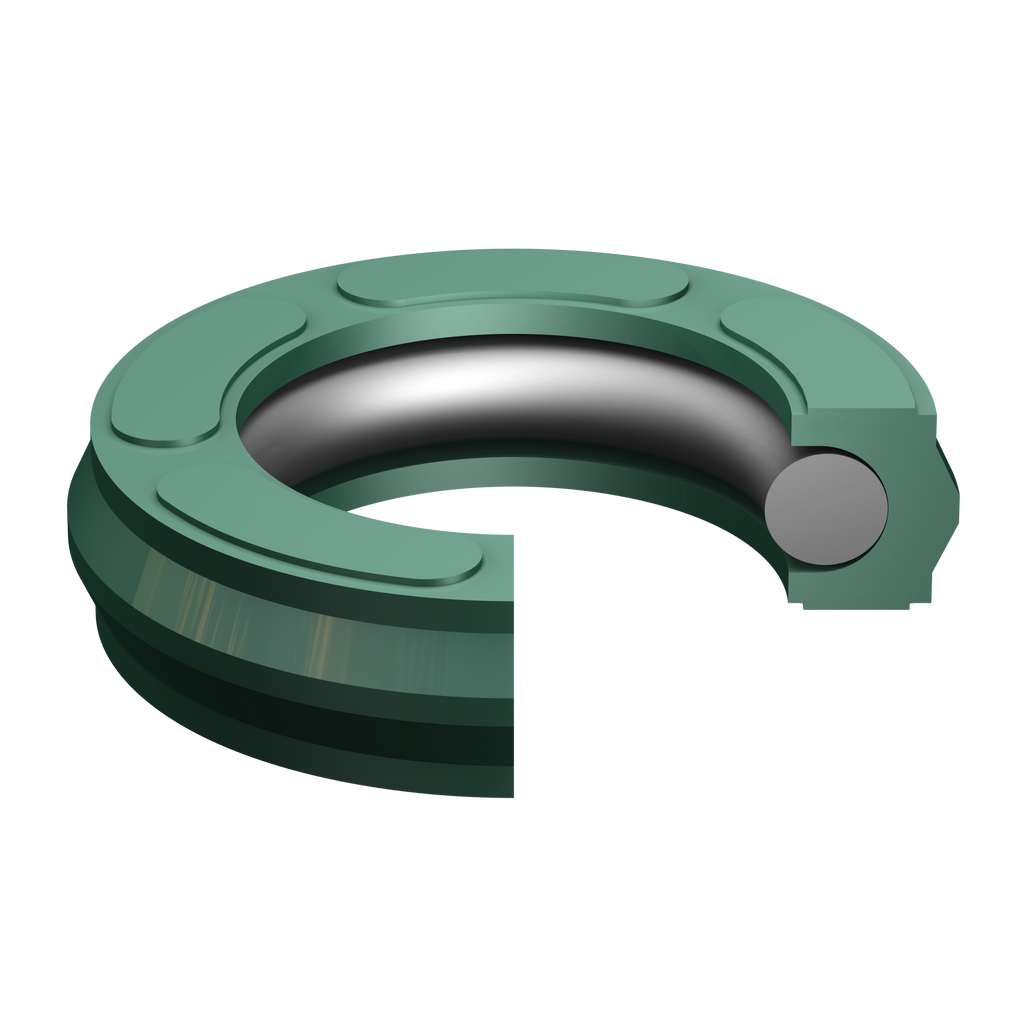

The CPX double-acting piston seal is designed to directly interchange with T-Seals, O-rings and X-Rings, in non-backup ring grooves. The urethane sealing surface produces a positive seal from vacuum to high pressure, due to the narrow single line contact area.
46 in Stock
Sydney, NSW
4
Melbourne, VIC
11
Newcastle, NSW
8
Brisbane, QLD
7
Hallam, VIC
2
Mackay, QLD
12
Adelaide, SA
2

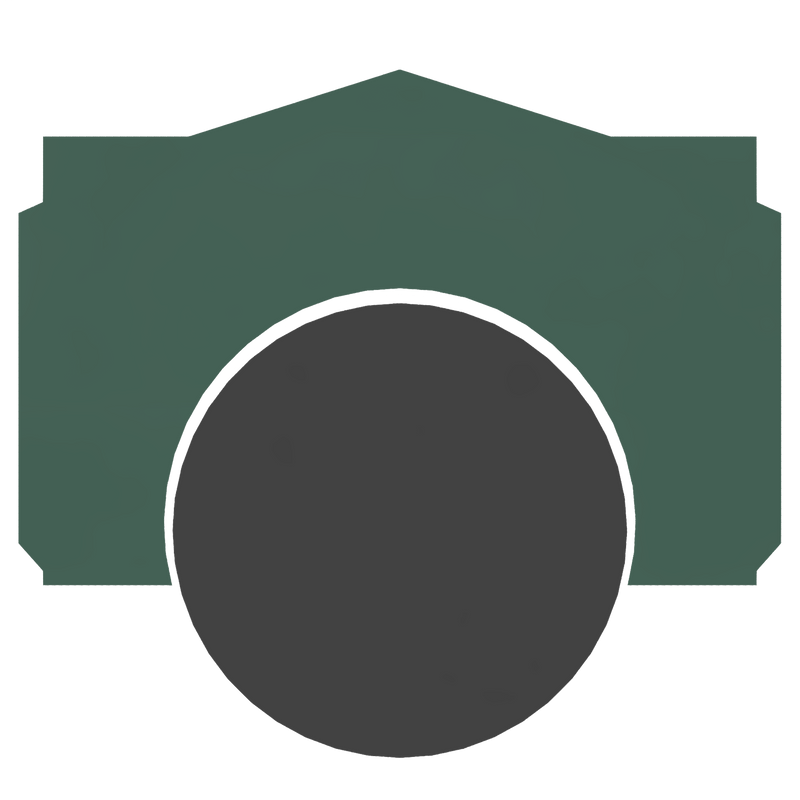

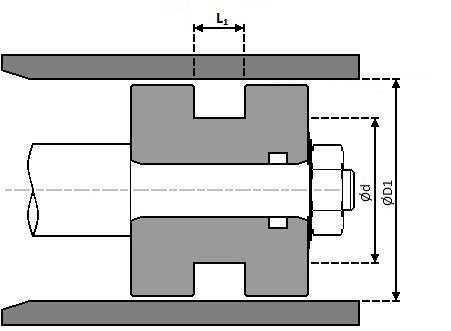

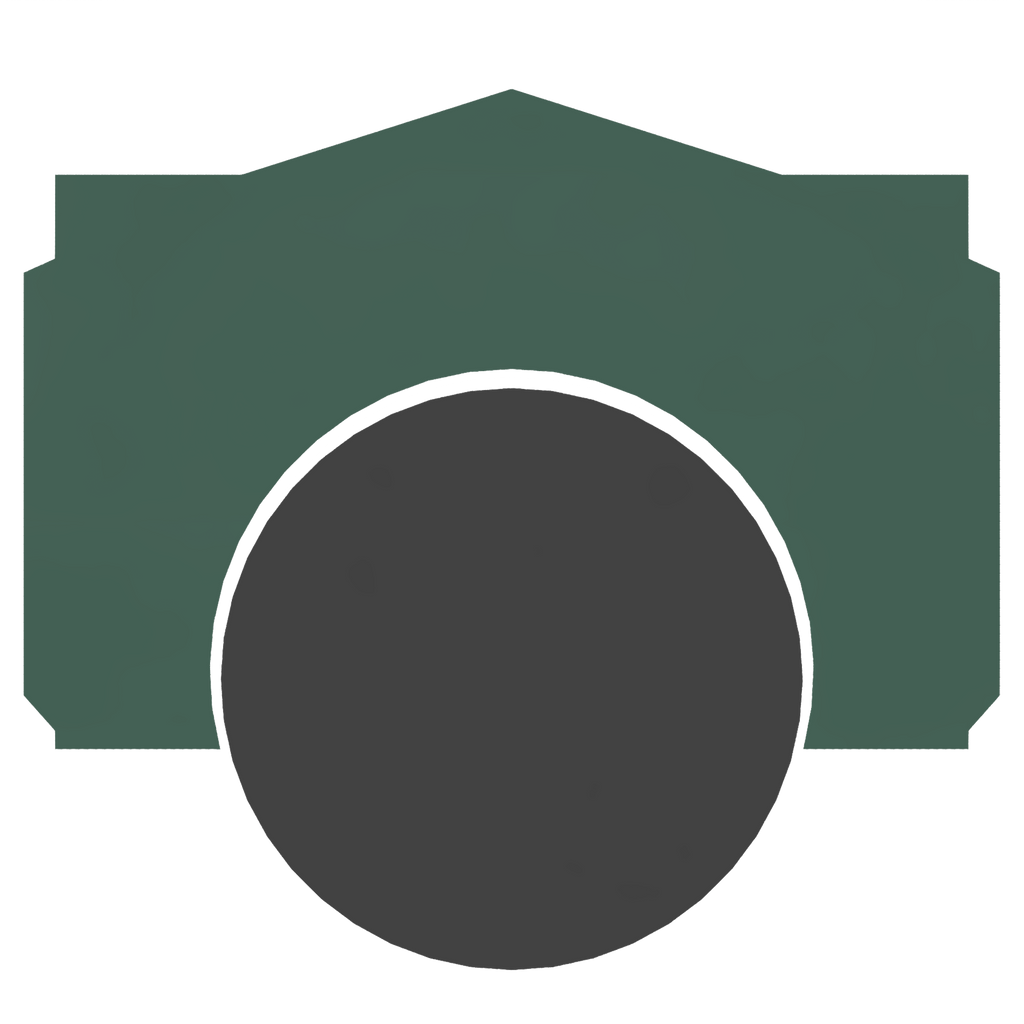

Profile: CPX Ød1: 3.130 ØD1: 3.500 L1: 0.410
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 250 Bar Type: D/A Piston Seals Application: D/A Piston Seals - 1 Piece Piston

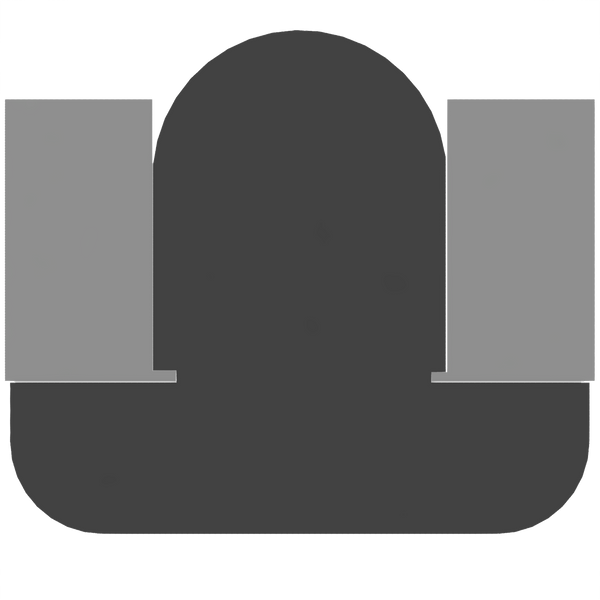

Alternate Products

LTP-03500WBLTP-03500WB
LTP-03500WB
0 in Stock
