Stock Code

CPXL-3500

DI 3500 3125 0531 0250 T-CPXL
$126.06
(ex GST)
Online Price

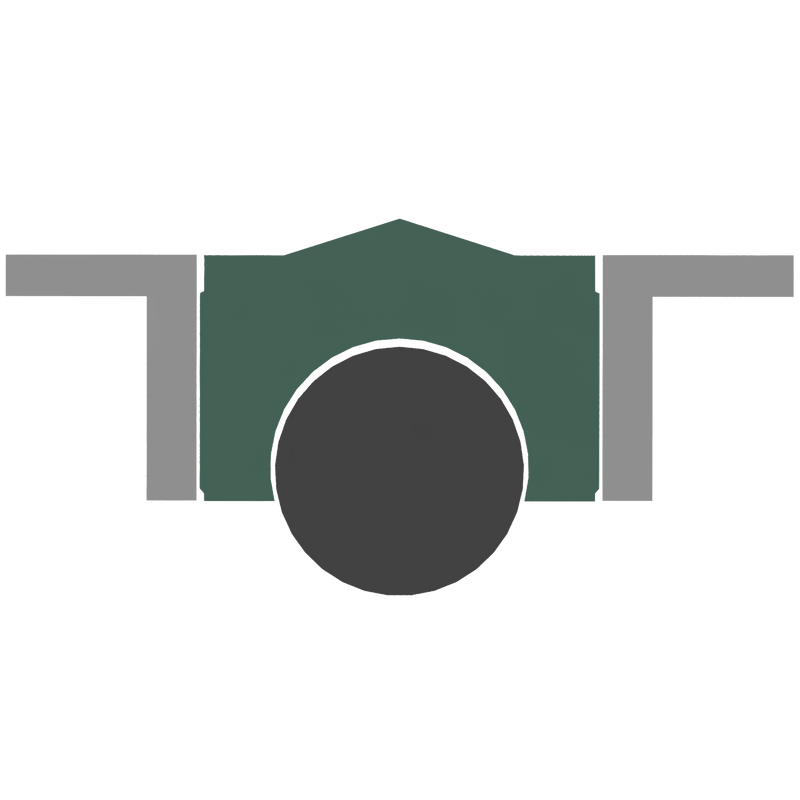

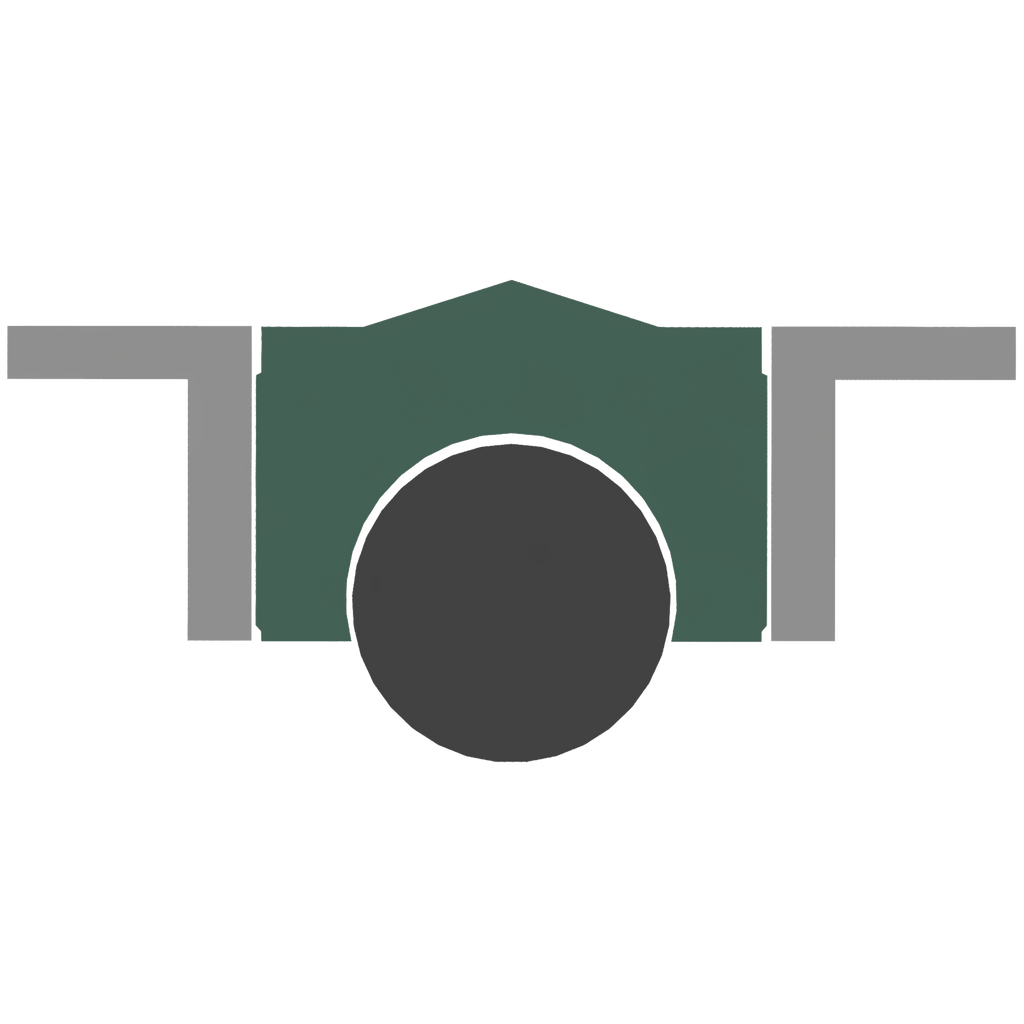

The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
14 in Stock
Sydney, NSW
2
Melbourne, VIC
2
Newcastle, NSW
2
Brisbane, QLD
4
Hallam, VIC
2
Mackay, QLD
2
Adelaide, SA
0

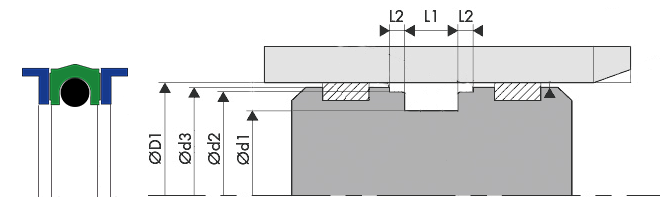

Profile: CPXL Ød1: 3.125 ØD1: 3.500 Ød2: 3.309 Ød3: 3.437 L1: 0.531 L2: 0.250
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.309 Piston Diameter: 3.437 Application: D/A Piston Seals
