KGD-350300-375
KGD-350300-375
KGD-350300-375
KGD-350300-375
Stock Code

KGD-350300-375

DI 3500 3000 0587 0375 T-KGDAE
$88.86
(ex GST)
Online Price
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
53 in Stock
Sydney, NSW
9
Melbourne, VIC
6
Newcastle, NSW
9
Brisbane, QLD
13
Hallam, VIC
7
Mackay, QLD
9
Adelaide, SA
0

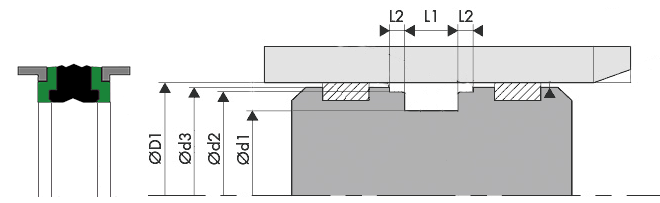

Profile: KGD Ød1: 3.000 ØD1: 3.500 Ød2: 3.312 Ød3: 3.437 L1: 0.587 L2: 0.375
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.312 Piston Diameter: 3.437 Application: D/A Piston Seals - 1 Piece Piston
