KGD-350300-250
KGD-350300-250
KGD-350300-250
KGD-350300-250
Stock Code

KGD-350300-250

DI 3500 3000 0587 0250 T-KGD
$74.26
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
79 in Stock
Sydney, NSW
11
Melbourne, VIC
35
Newcastle, NSW
9
Brisbane, QLD
12
Hallam, VIC
5
Mackay, QLD
7

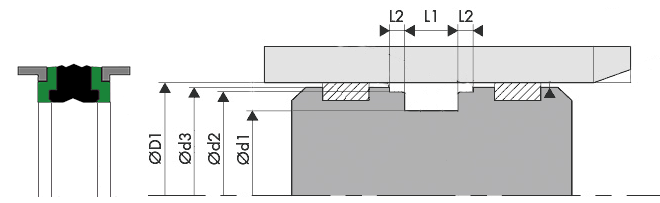

Profile: KGD Ød1: 3.000 ØD1: 3.500 Ød2: 3.274 Ød3: 3.437 L1: 0.587 L2: 0.250
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.274 Piston Diameter: 3.437 Applications(s): ["D/A Piston Seals"]
