Stock Code

K46-03500

DI 3500 3000 0562 0210 T-K46
$79.50
(ex GST)
Online Price
The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
119 in Stock
Sydney, NSW
14
Melbourne, VIC
16
Newcastle, NSW
17
Brisbane, QLD
39
Hallam, VIC
7
Mackay, QLD
18
Adelaide, SA
8

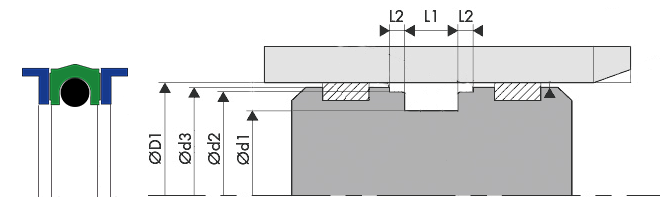

Profile: CPXL Ød1: 3.000 ØD1: 3.500 Ød2: 3.27 Ød3: 3.437 L1: 0.562 L2: 0.210
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.27 Piston Diameter: 3.437 Application: D/A Piston Seals
