Stock Code

CR-03250-XSL

DI 3250 3620 0280 T-CR XSL

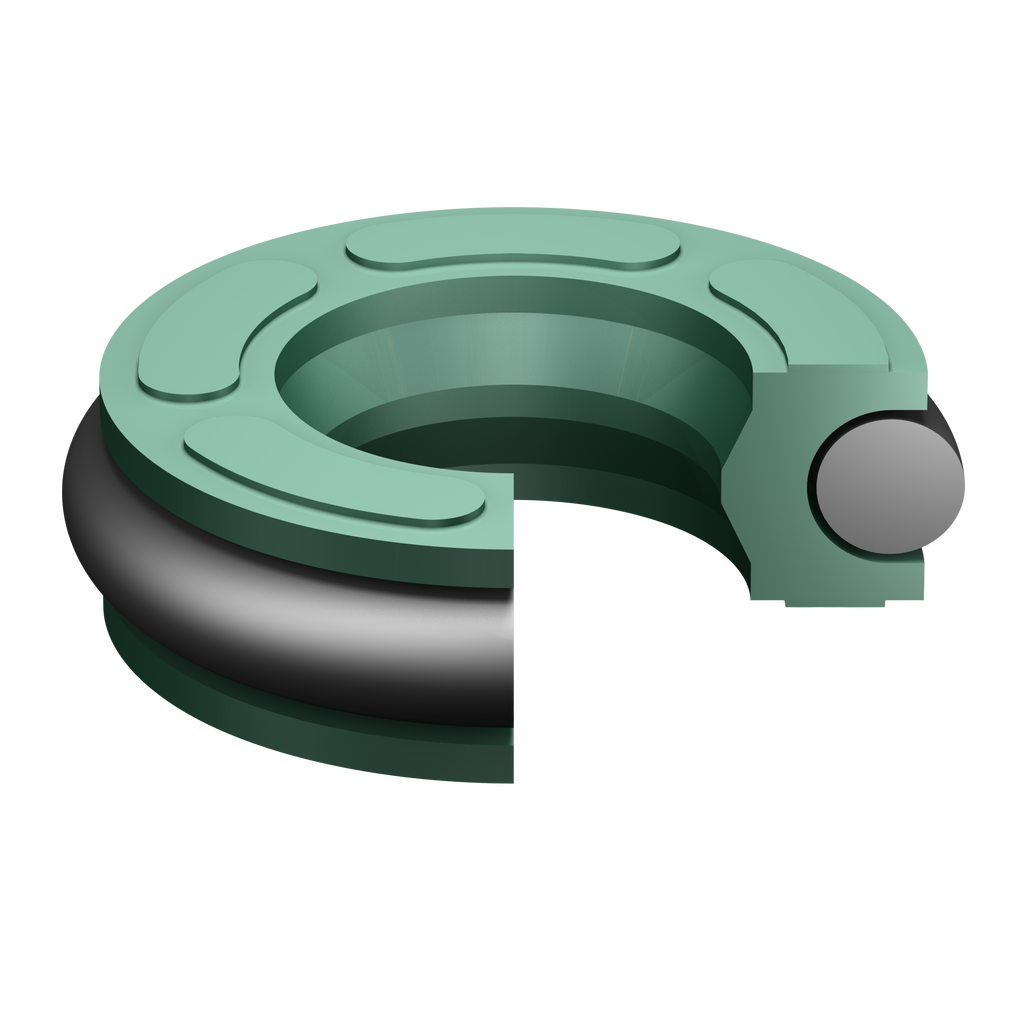

The CRX double-acting rod seal is designed to directly interchange with T-Seals, O-rings and X-Rings, in non-backup ring grooves. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
Price on Application
7 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
7
Hallam, VIC
0
Mackay, QLD
0

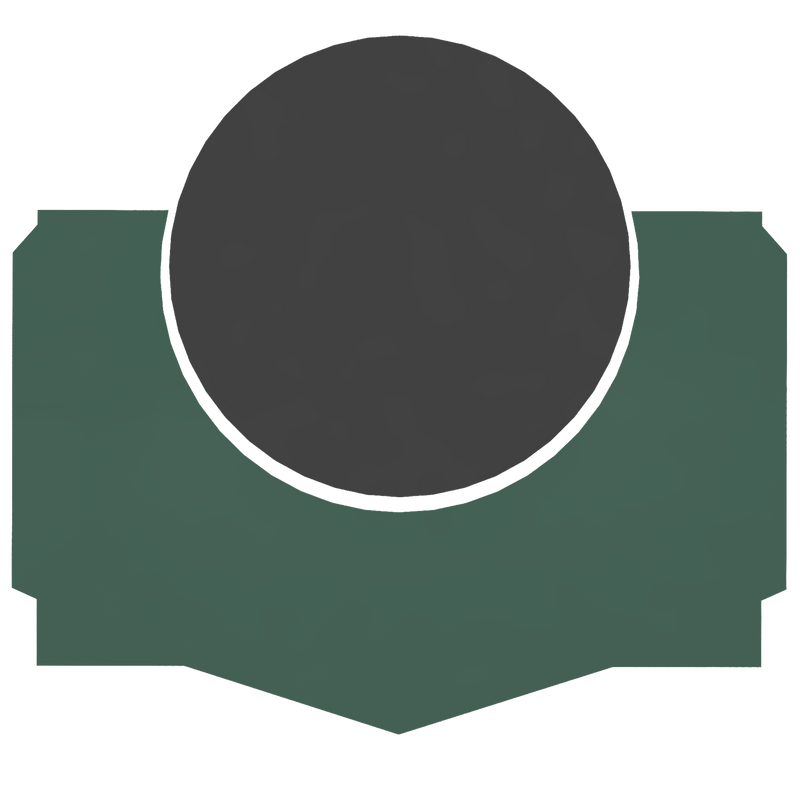

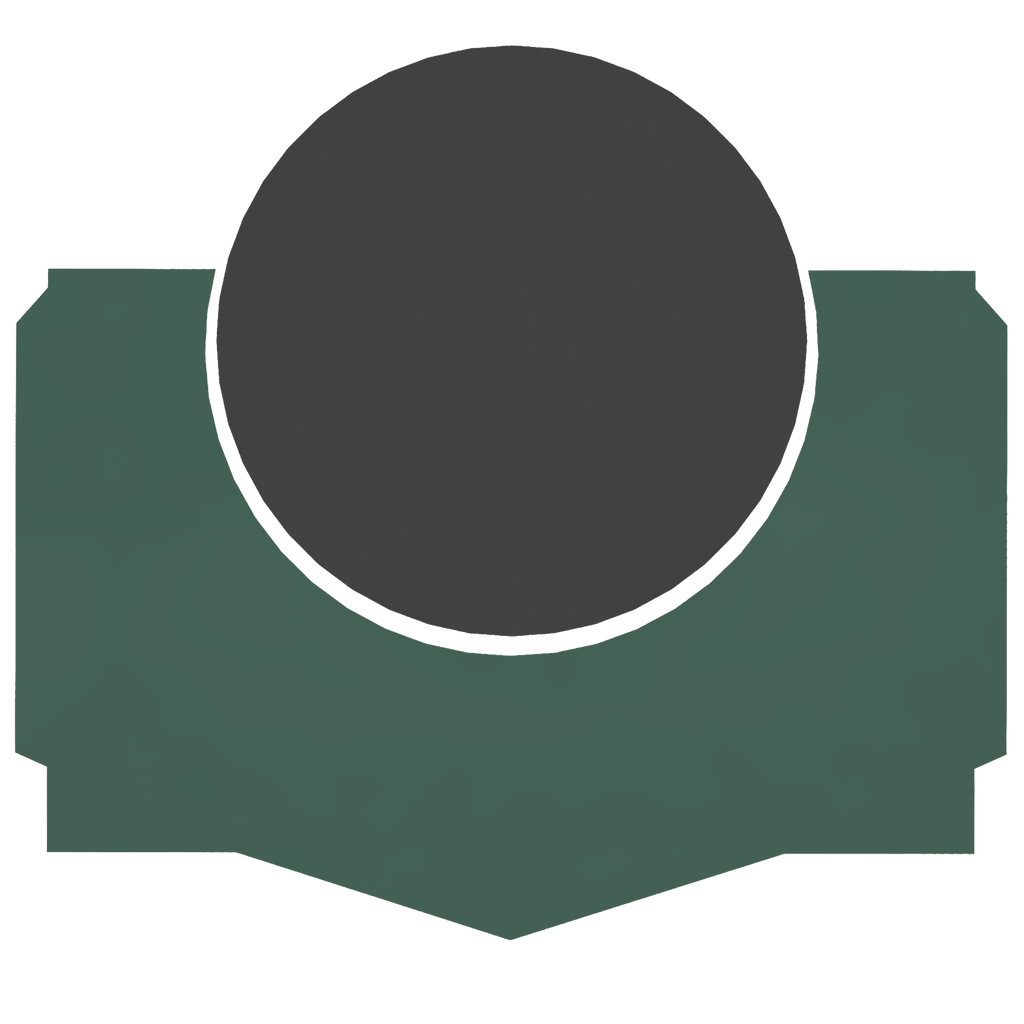

Profile: CRX Ød1: 3.250 ØD1: 3.620 L1: 0.280
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 250 Bar Type: D/A Rod Seals Applications(s): ["D/A Rod Seals"]
