Stock Code

H83-325275-250

DI 3250 2750 0587 0250 T-KGD
$110.87
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
11 in Stock
Sydney, NSW
0
Melbourne, VIC
3
Newcastle, NSW
3
Brisbane, QLD
1
Hallam, VIC
2
Mackay, QLD
2

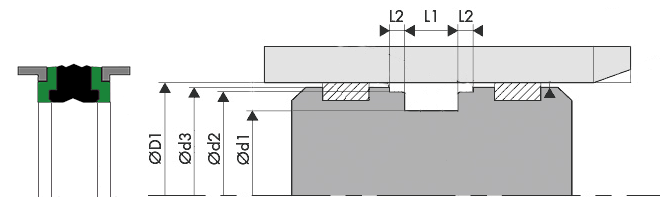

Profile: KGD Ød1: 2.750 ØD1: 3.250 Ød2: 3.023 Ød3: 3.19 L1: 0.587 L2: 0.250
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 3.023 Piston Diameter: 3.19 Applications(s): ["D/A Piston Seals"]
