Stock Code

CPXL-3000

DI 3000 2625 0531 0250 T-CPXL
$117.76
(ex GST)
Online Price
The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
17 in Stock
Sydney, NSW
3
Melbourne, VIC
2
Newcastle, NSW
6
Brisbane, QLD
0
Hallam, VIC
2
Mackay, QLD
4
Adelaide, SA
0

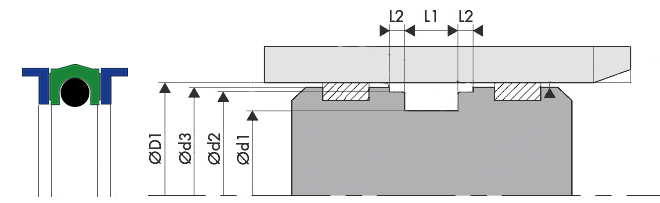

Profile: CPXL Ød1: 2.625 ØD1: 3.000 Ød2: 2.809 Ød3: 2.937 L1: 0.531 L2: 0.250
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 2.809 Piston Diameter: 2.937 Application: D/A Piston Seals
