Stock Code

K46-03000

Name: K46-03000
Brand: Hydraulic Seals Australia
SKU: K46-03000
Price: 60.94 AUD
Availability: InStock

DI 3000 2625 0437 0150 T-K46

$60.94

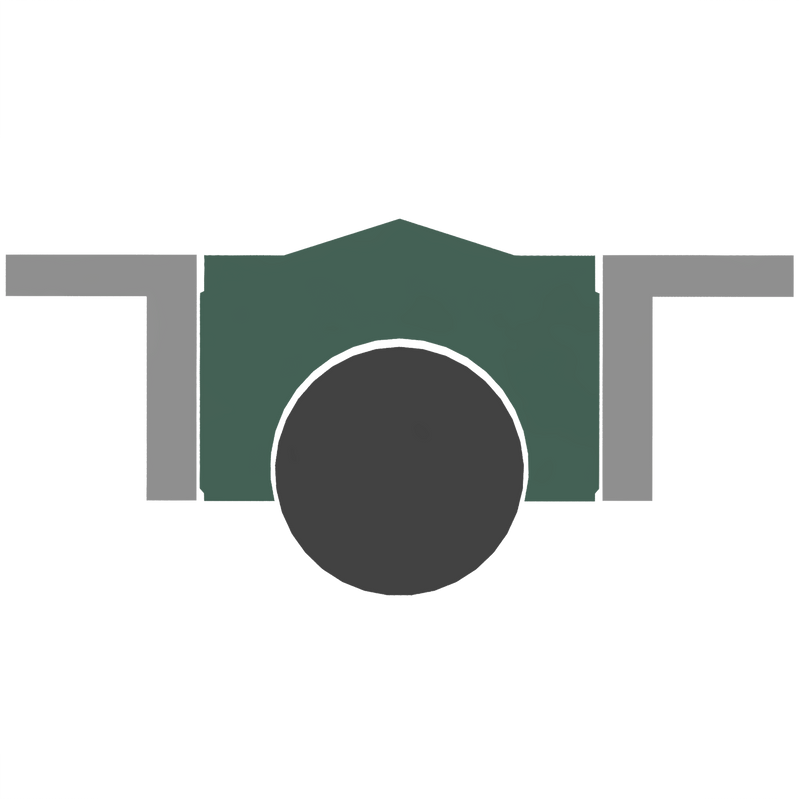

The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.

Quantity:

Stock Locations 86 in Stock

Sydney, NSW

Melbourne, VIC

Newcastle, NSW

Brisbane, QLD

Hallam, VIC

Mackay, QLD

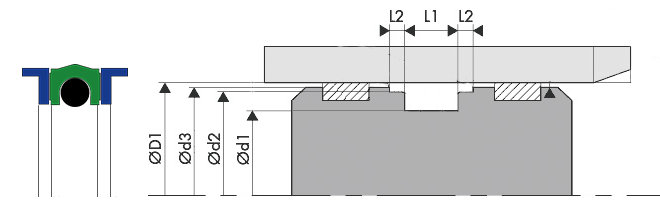

Profile: CPXL Ød1: 2.625 ØD1: 3.000 Ød2: 2.825 Ød3: 2.937 L1: 0.437 L2: 0.150

Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 2.825 Piston Diameter: 2.937 Applications(s): ["D/A Piston Seals"]
