KGD-300250-250
KGD-300250-250
KGD-300250-250
KGD-300250-250
Stock Code

KGD-300250-250

DI 3000 2500 0587 0250 T-KGD
$67.57
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
504 in Stock
Sydney, NSW
18
Melbourne, VIC
262
Newcastle, NSW
31
Brisbane, QLD
146
Hallam, VIC
26
Mackay, QLD
21

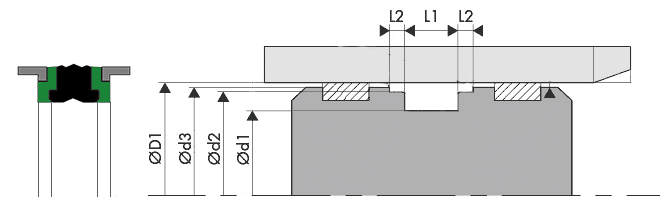

Profile: KGD Ød1: 2.500 ØD1: 3.000 Ød2: 2.774 Ød3: 2.937 L1: 0.587 L2: 0.250
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 2.774 Piston Diameter: 2.937 Applications(s): ["D/A Piston Seals"]
