HDX-03000-XSL
HDX-03000-XSL
HDX-03000-XSL
HDX-03000-XSL
Stock Code

HDX-03000-XSL

DI 3000 2250 1187 0250 T-HDX XSL
$113.21
(ex GST)
Online Price
The HDX has been designed to upgrade aging Rubber/Fabric Piston Seals, with a modern, wear resistant self-lubricated 60 Shore D urethane face and a 80 Shore A NBR energiser. The larger Guide Rings have been developed to provide more support, in order to withstand greater side loads and manage larger extrusion gaps in extreme conditions at higher speeds and pressures.
264 in Stock
Sydney, NSW
44
Melbourne, VIC
35
Newcastle, NSW
40
Brisbane, QLD
31
Hallam, VIC
35
Mackay, QLD
46
Adelaide, SA
33

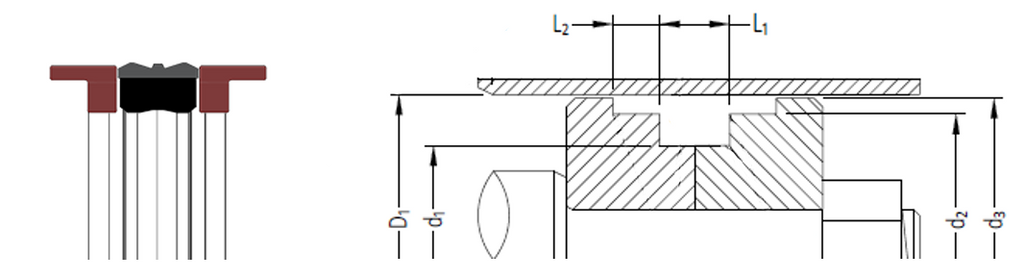

Profile: HDX Ød1: 2.250 ØD1: 3.000 Ød2: 2.732 Ød3: 2.937 L1: 1.187 L2: 0.250
Temp: -35°C To 105°C Speed: 2.0m/s Pressure: 700 Bar Type: D/A Piston Seals Wear Ring Diameter: 2.732 Piston Diameter: 2.937 Application: D/A Piston Seals - Split Piston Only
