HDX-03000A-XSL
HDX-03000A-XSL
HDX-03000A-XSL
HDX-03000A-XSL
Stock Code

HDX-03000A-XSL

DI 3000 2250 0867 0250 T-HDX XSL
$122.64
The HDX has been designed to upgrade aging Rubber/Fabric Piston Seals, with a modern, wear resistant self-lubricated 60 Shore D urethane face and a 80 Shore A NBR energiser. The larger Guide Rings have been developed to provide more support, in order to withstand greater side loads and manage larger extrusion gaps in extreme conditions at higher speeds and pressures.
5 in Stock
Sydney, NSW
1
Melbourne, VIC
1
Newcastle, NSW
1
Brisbane, QLD
0
Hallam, VIC
1
Mackay, QLD
1

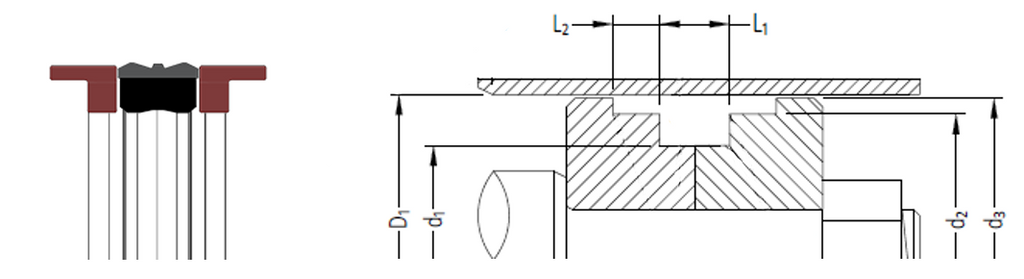

Profile: HDX Ød1: 2.250 ØD1: 3.000 Ød2: 2.732 Ød3: 2.937 L1: 0.867 L2: 0.250
Temp: -35°C To 105°C Speed: 2.0m/s Pressure: 700 Bar Type: D/A Piston Seals Wear Ring Diameter: 2.732 Piston Diameter: 2.937 Applications(s): ["D/A Piston Seals"]
