Stock Code

CPXL-2500

Name: CPXL-2500
Brand: Hydraulic Seals Australia
SKU: CPXL-2500
Price: 106.45 AUD
Availability: InStock

DI 2500 2125 0531 0250 T-CPXL

$106.45

The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.

Quantity:

Stock Locations 17 in Stock

Sydney, NSW

Melbourne, VIC

Newcastle, NSW

Brisbane, QLD

Hallam, VIC

Mackay, QLD

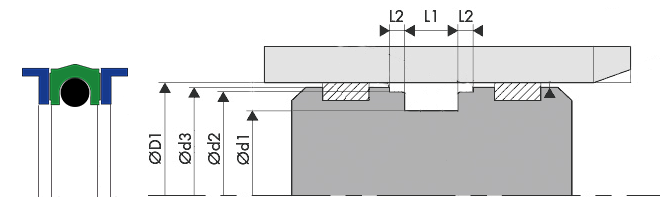

Profile: CPXL Ød1: 2.125 ØD1: 2.500 Ød2: 2.311 Ød3: 2.437 L1: 0.531 L2: 0.250

Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 2.311 Piston Diameter: 2.437 Applications(s): ["D/A Piston Seals"]
