KGD-250200-250
KGD-250200-250
KGD-250200-250
KGD-250200-250
Stock Code

KGD-250200-250

DI 2500 2000 0587 0250 T-KGD
$57.68
The KGD is a high-performing Double Acting compact Piston Seal, comprised of a flexible NBR sealing element, two polyester back-up rings and two POM wear rings.
736 in Stock
Sydney, NSW
18
Melbourne, VIC
308
Newcastle, NSW
24
Brisbane, QLD
310
Hallam, VIC
36
Mackay, QLD
40

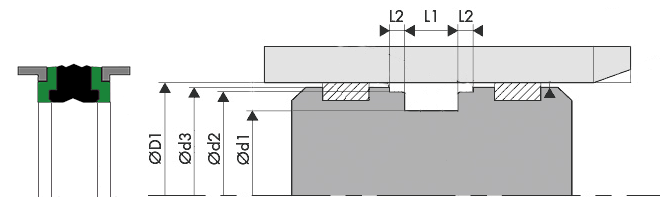

Profile: KGD Ød1: 2.000 ØD1: 2.500 Ød2: 2.321 Ød3: 2.437 L1: 0.587 L2: 0.250
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 2.321 Piston Diameter: 2.437 Application: D/A Piston Seals
