DI 2500 1127 1000 T-UP
DI 2500 1127 1000 T-UP
Stock Code

UP-2500A1

Price on Enquiry
A unitised piston is a complete piston assembly with a double-acting seal and integrated wear rings. The piston is made from high strength steel and the glass-filled nylon wear rings are moulded onto it, so they are not removable or replaceable. These wear rings are precision machined to suit the cylinder bore, so the extrusion gap is kept to a minimum and piston ‘rock’ is eliminated. A groove is plunged in the centre of the piston into which a filled-PTFE glide ring style of seal is fitted.
Enquire Now
0 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

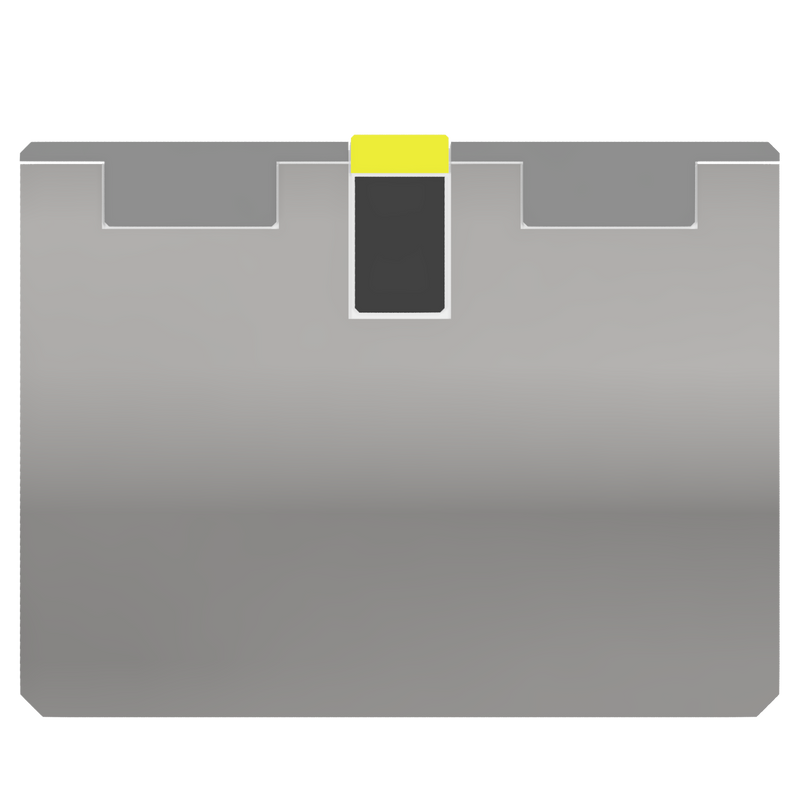

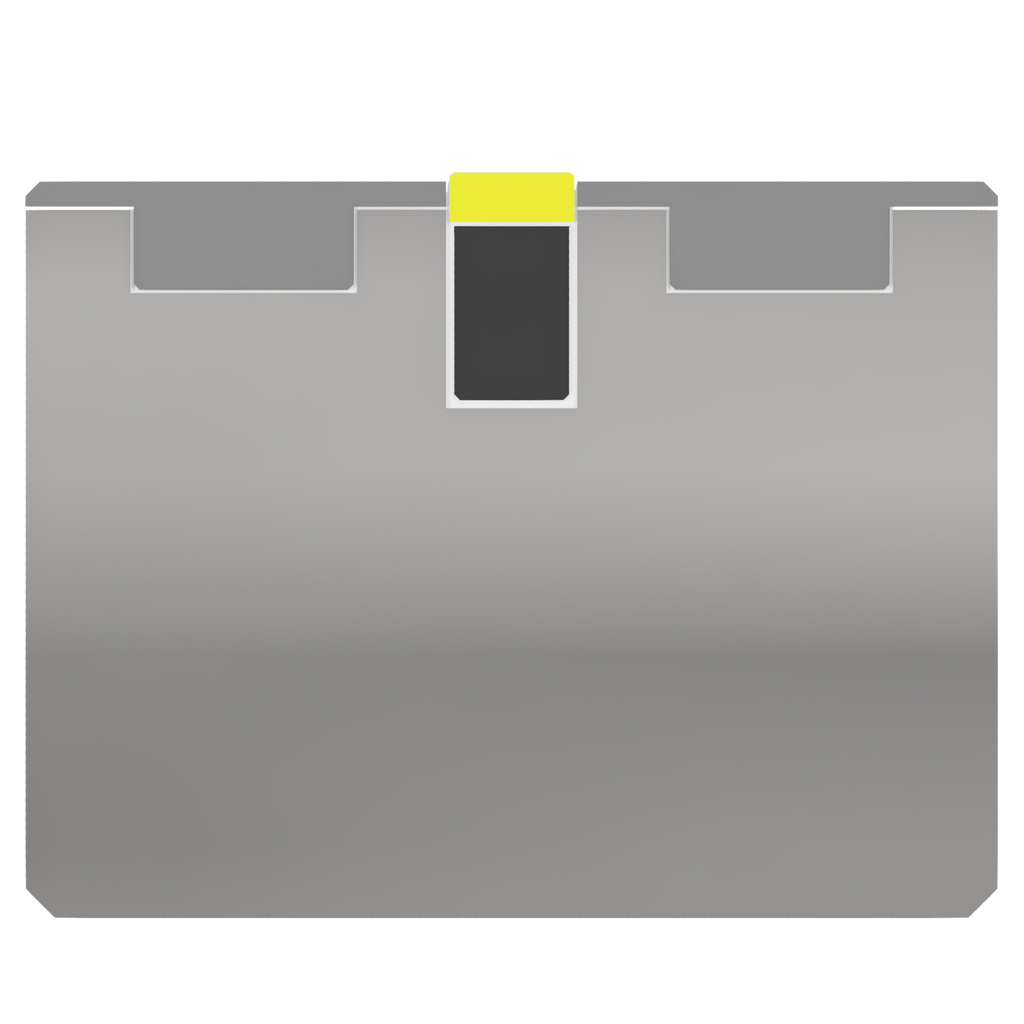

Profile: UP Ød1: 1.127 ØD1: 2.500 L1: 1.000
Type: Unitised Pistons Applications(s): Unitised Pistons
