Stock Code

CRX-329-U2151

DI 2000 2370 0281 T-CRX
$33.18

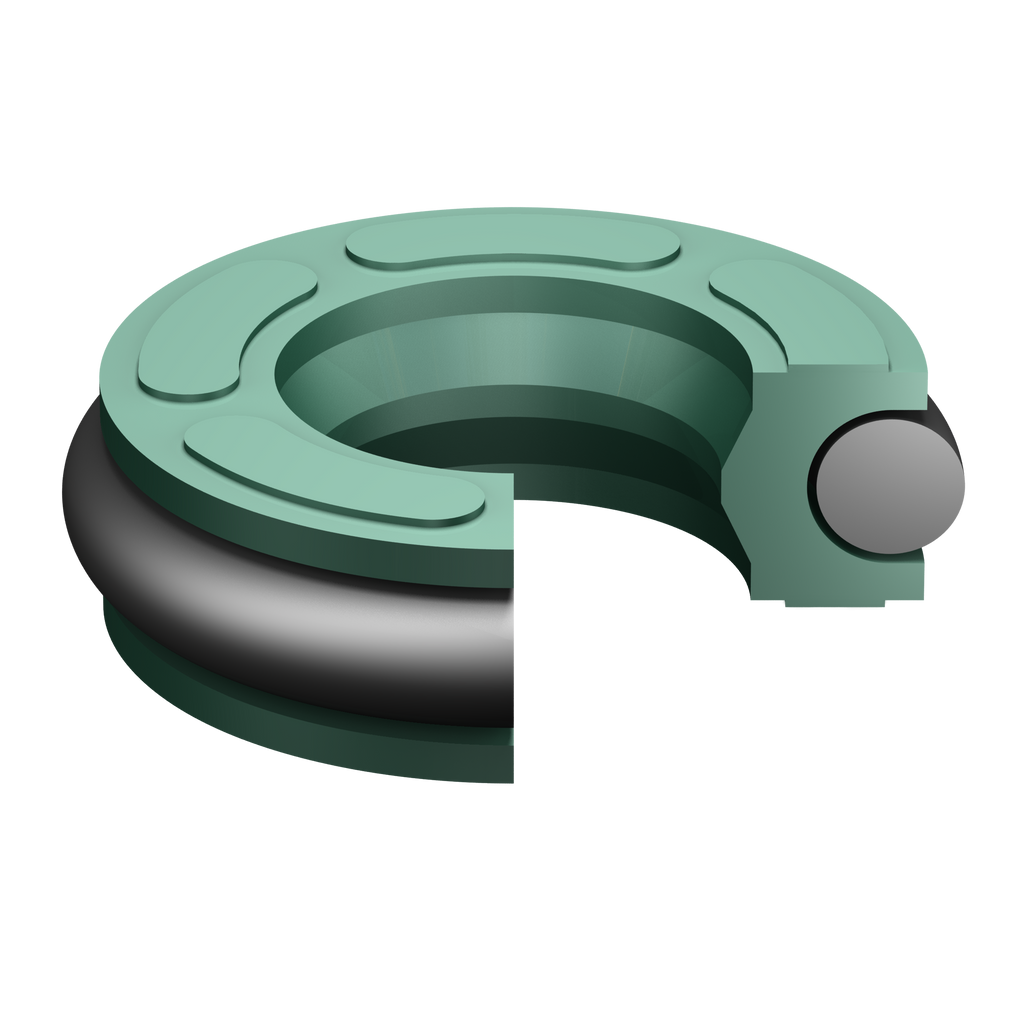

The CRX double-acting rod seal is designed to directly interchange with T-Seals, O-rings and X-Rings, in non-backup ring grooves. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
1 in Stock
Sydney, NSW
1
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

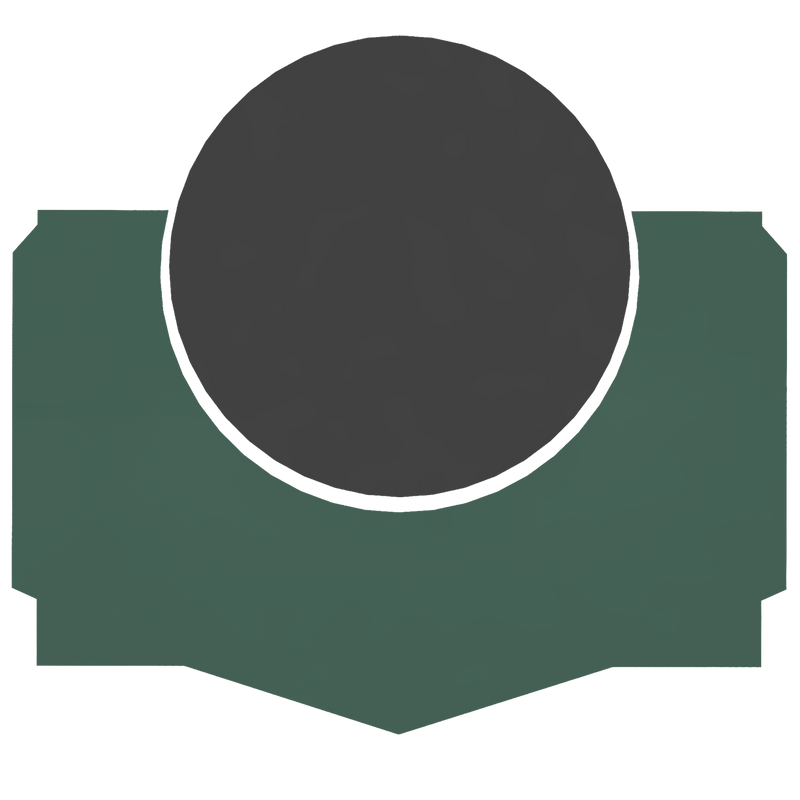

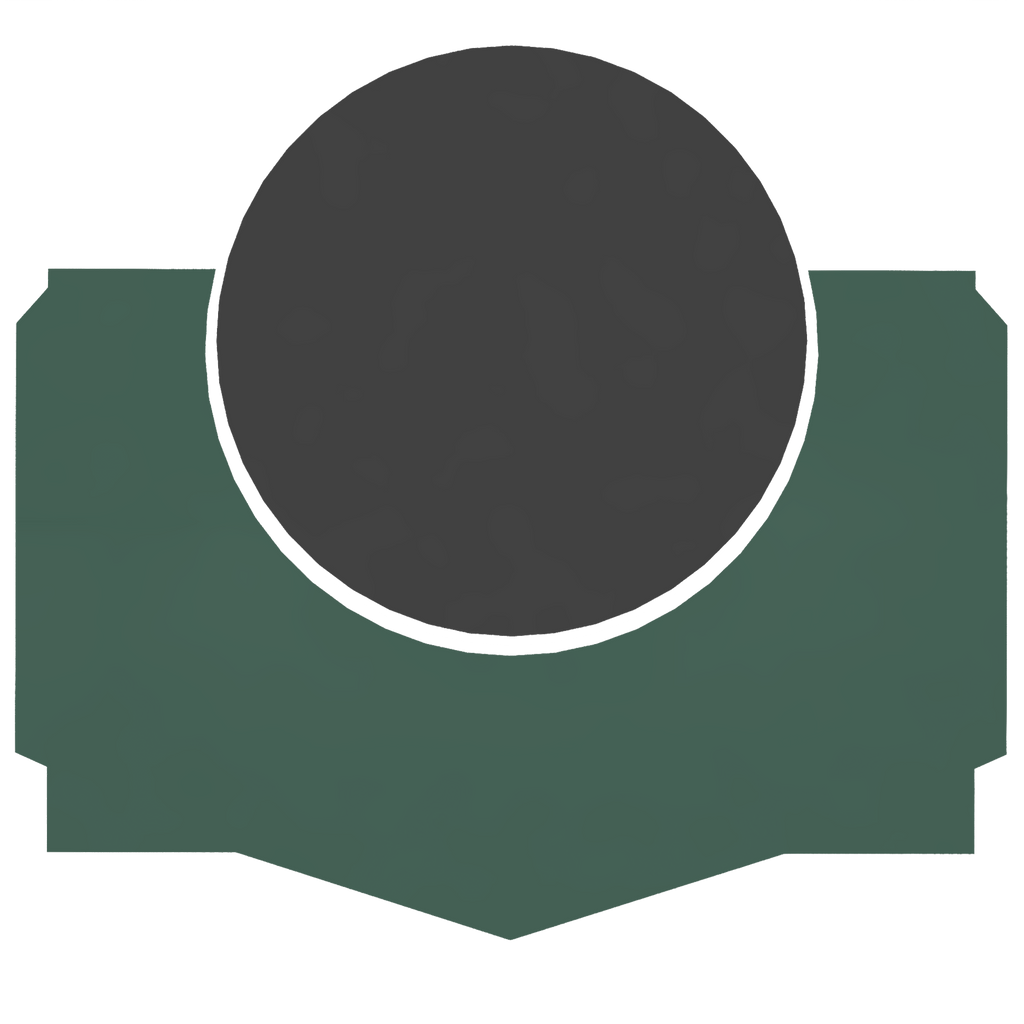

Profile: CRX Ød1: 2.000 ØD1: 2.370 L1: 0.281
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 250 Bar Type: D/A Rod Seals Applications(s): ["D/A Rod Seals"]
