CPXL-2000
CPXL-2000
CPXL-2000
CPXL-2000
Stock Code

CPXL-2000

DI 2000 1625 0531 0250 T-CPXL
$101.43

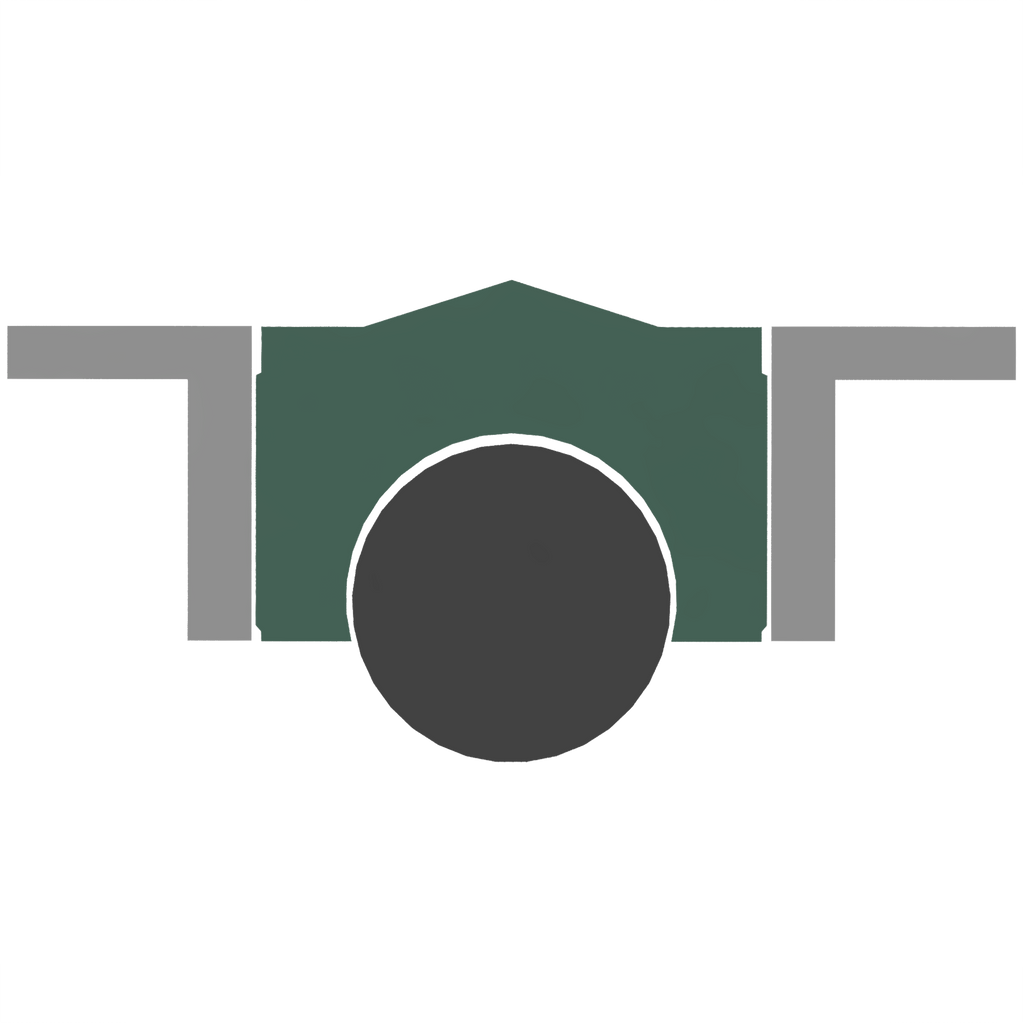

The CPXL is a double acting piston seal comprising of a CPX seal in MFP’s U2150 and two acetal (POM) guiding elements suited for use on a one piece piston. The U2150 sealing face in tandem with the 70 Shore NBR O-Ring energiser produces a positive seal from vacuum to high pressure due to the narrow single line contact area.
11 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
5
Brisbane, QLD
4
Hallam, VIC
0
Mackay, QLD
2

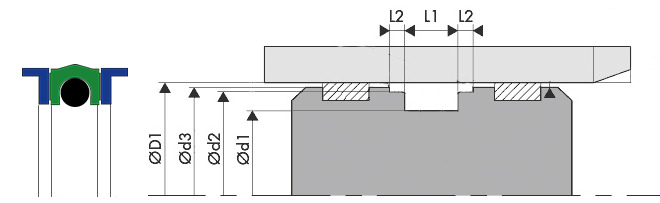

Profile: CPXL Ød1: 1.625 ØD1: 2.000 Ød2: 1.811 Ød3: 1.937 L1: 0.531 L2: 0.250
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 1.811 Piston Diameter: 1.937 Applications(s): ["D/A Piston Seals"]
