Stock Code

DAS-175100

DI 1750 1000 0765 0250 T-MD
Sale price Price on Enquiry
The MD is a high-performing Double Acting compact Piston Seal, comprised of a flexible rubber ring. two polyester back-up rings and two POM wear rings.
Enquire Now
0 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
0
Hallam, VIC
0
Mackay, QLD
0

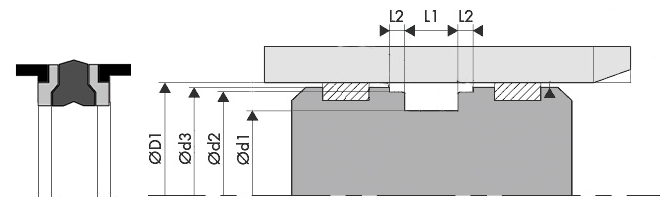

Profile: MD Ød1: 1.000 ØD1: 1.750 Ød2: 1.57 Ød3: 1.687 L1: 0.765 L2: 0.250
Temp: -40°C To 110°C Speed: 0.5m/s Pressure: 400 Bar Type: D/A Piston Seals Wear Ring Diameter: 1.57 Piston Diameter: 1.687 Applications(s): ["D/A Piston Seals"]
