Stock Code

CPX-01500

DI 1500 1258 0187 T-CPX
$29.34
(ex GST)
Online Price

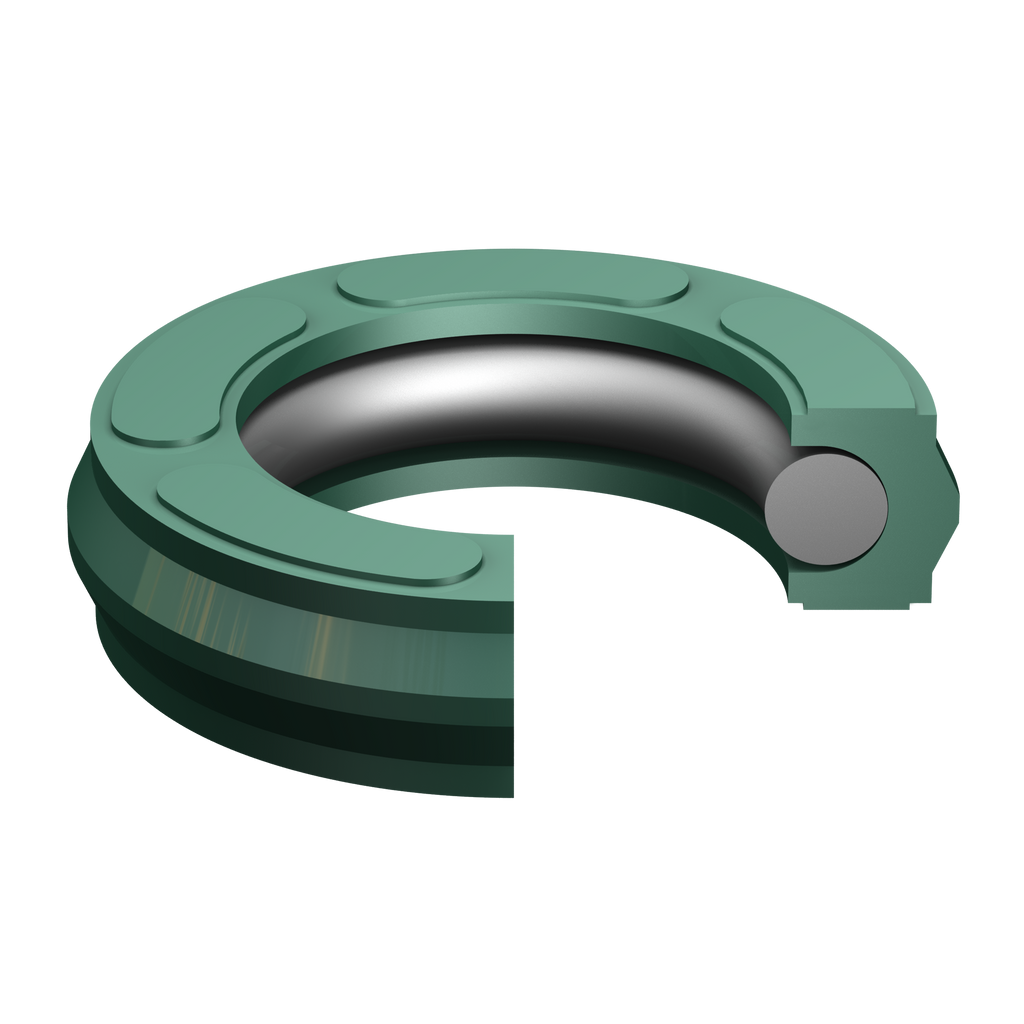

The CPX double-acting piston seal is designed to directly interchange with T-Seals, O-rings and X-Rings, in non-backup ring grooves. The urethane sealing surface produces a positive seal from vacuum to high pressure, due to the narrow single line contact area.
158 in Stock
Sydney, NSW
21
Melbourne, VIC
86
Newcastle, NSW
10
Brisbane, QLD
18
Hallam, VIC
7
Mackay, QLD
10
Adelaide, SA
6

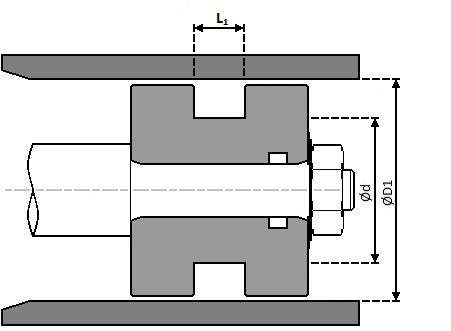

Profile: CPX Ød1: 1.258 ØD1: 1.500 L1: 0.187
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 250 Bar Type: D/A Piston Seals Application: D/A Piston Seals - 1 Piece Piston
