Stock Code

CPX-03500-U2155

DI 3500 3130 0281 T-CPX U2155
$45.00
(ex GST)
Online Price

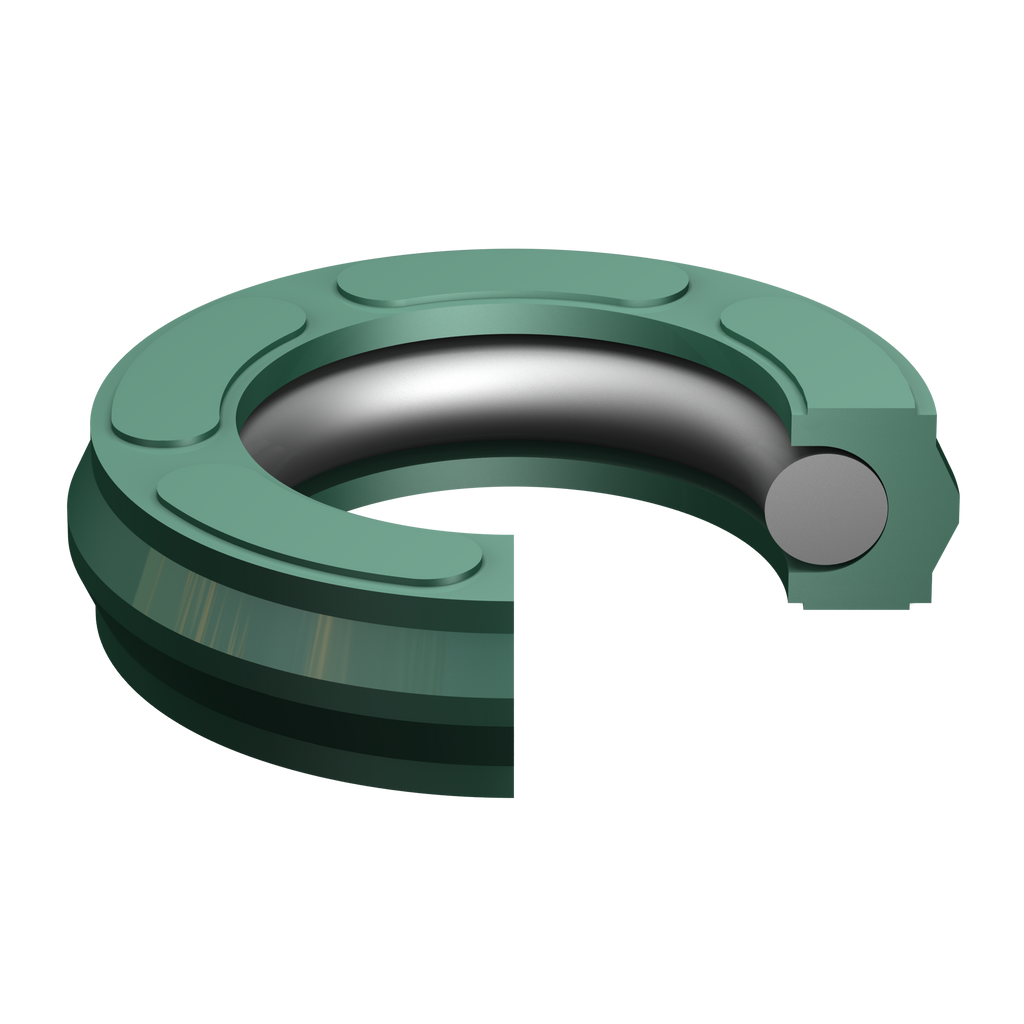

The CPX double-acting piston seal is designed to directly interchange with T-Seals, O-rings and X-Rings, in non-backup ring grooves. The urethane sealing surface produces a positive seal from vacuum to high pressure, due to the narrow single line contact area.
18 in Stock
Sydney, NSW
0
Melbourne, VIC
0
Newcastle, NSW
0
Brisbane, QLD
18
Hallam, VIC
0
Mackay, QLD
0
Adelaide, SA
0

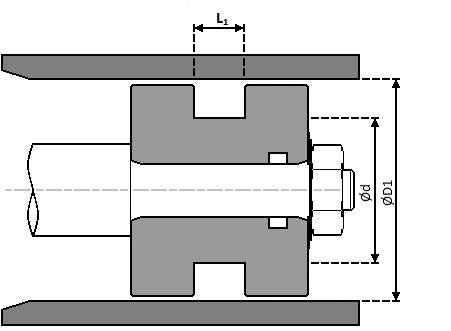

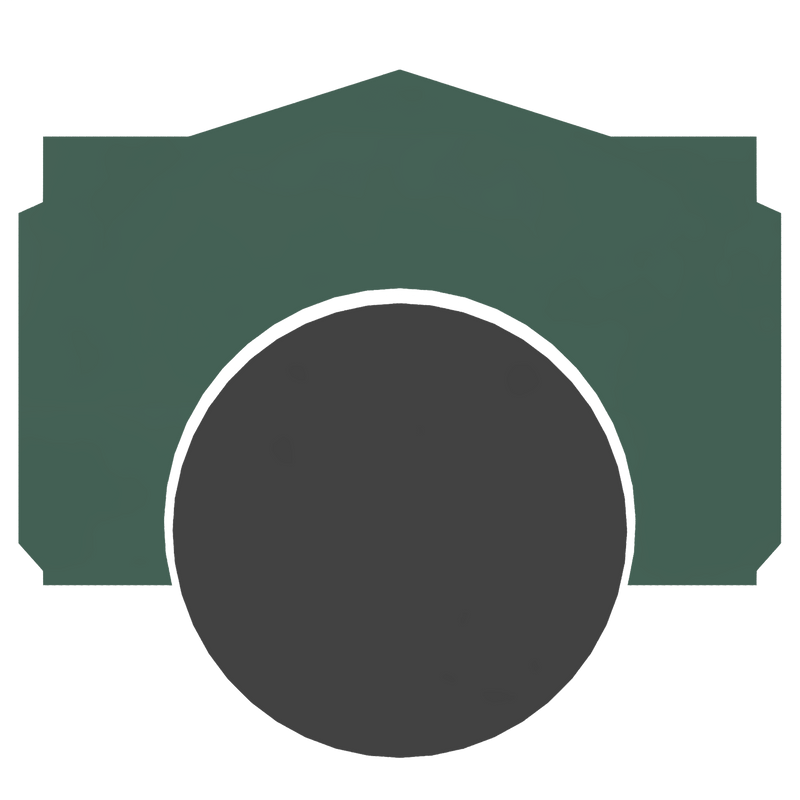

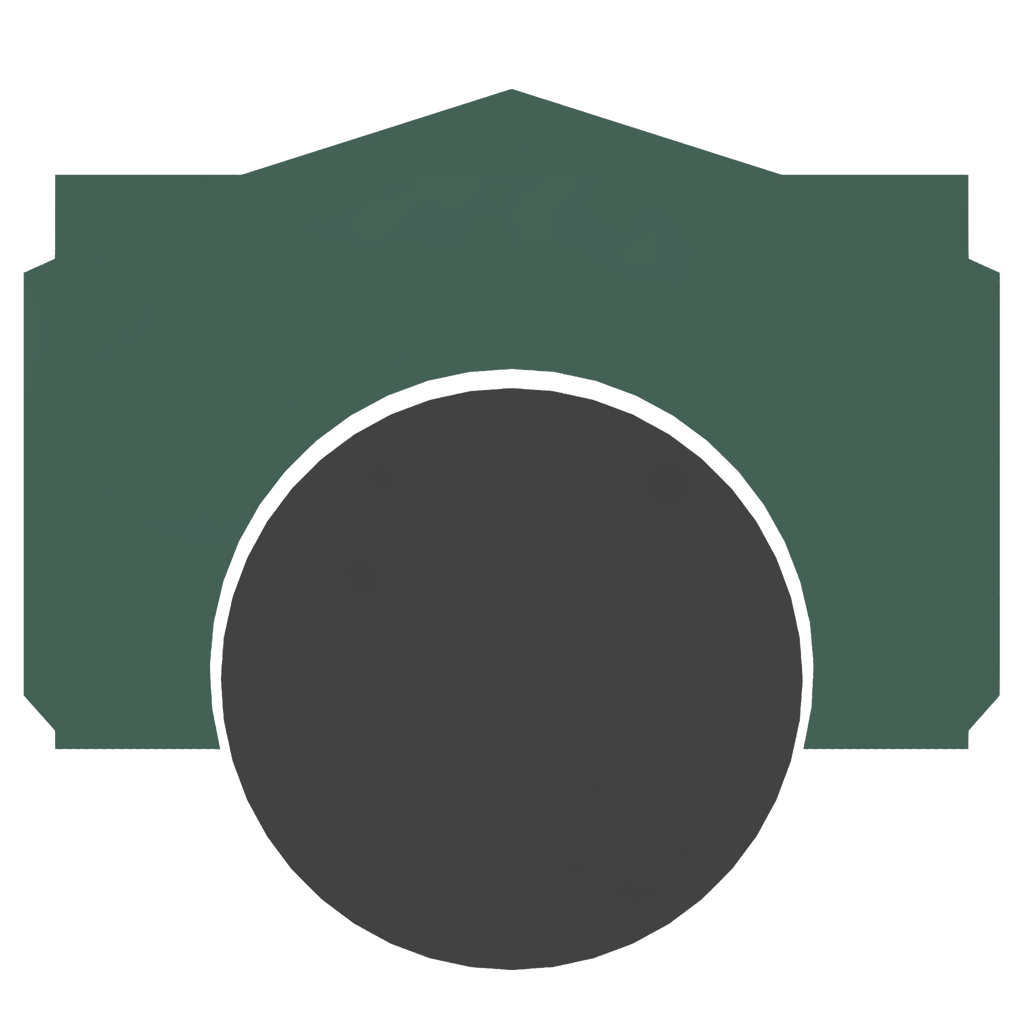

Profile: CPX Ød1: 3.130 ØD1: 3.500 L1: 0.281
Temp: -45°C To 110°C Speed: 0.5m/s Pressure: 250 Bar Type: D/A Piston Seals Application: D/A Piston Seals - 1 Piece Piston
